Fiber cnc laser metal cutting machine tool equipment from china for small businesses

FOB Reference Price:Get Latest Price
$110,000.00 - $120,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
T230A
Power(W):
1000W
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
20-230mm
Cutting Speed:
140m/min
Graphic Format Supported:
AI, DXF, DWG
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Place of Origin:
Shandong, China
Brand Name:
bodor
Certification:
CE, ISO, SGS
Laser Source Brand:
IPG/MAX
Laser Head Brand:
bodorgenius
Control System Brand:
bodorpro
Key Selling Points:
cast iron bed
Warranty:
3 years, 3 years
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Advertising Company
Max. cutting speed:
25m/min
Min. line width:
0.15mm
Cooling way:
water cooling
Control system:
Bodor Pro2.0
Max.cutting speed:
35m/min
Max.acceliration:
1.5g
Loading way:
Automatic loading
Cutting material:
Metal Stainless Steel Carbon Steel Aluminum
Supply Ability
Supply Ability:
25 Set/Sets per Month machinery machine
Packaging & Delivery
Packaging Details
Plywood case
Port
Qingdao, China
Video Description
Product Description


Product Application

Application: It can cut pipe, squre tube, and various special-shaped pipe cutting.
Diameter for tube:20-200mm
Cutting length: 6m/4m etc
Cutting thickness with 500W fiber source: 3mm stainless steel, 6mm carbon steel, 2mm copper, 2mm aluminum etc, 2.5mm galvanised plate etc.


Features


*Automatic Loading System: round, ellipse, rectangular, Dype tube and etc. can be automatically loaded without human intervention.

*Advanced Chuck Clamping System: chuck center and clamping force adjust automatically according to material specification, in case of thin tube damage when clamping .
*Advanced Layout System: automatically measurement and calculation of material length to optimize cutting sequence and maximize the availability of material.
*High-speed Cutting System: corner fast response, greatly improve cutting efficiency.
*Efficient Unloading System: workpiece can be unloaded automatically in different areas.
*Ventilation Dust System: advanced ventilation dust system to ensure the neat of site.

Advantages


1. Laser tube cutting machine integrates laser drilling, kerf cutting, contour cutting processing of tube surface. The traditional processing way is easy to genetate slag and burr, in additional, it costs time and has low accuracy during cutting. Automatic laser tube cutting machine has intelligent system and high integration, which can achieve real flexible processing. No matter how complex the component figure is, it can achieve high precision one step molding, no need to do follow-up deburring treatment.
2. One-step molding.
3. Efficiency and cost saving.

Parameters for  reference
Machine model
T230A
Size
6000mm
Effective Pipe Cutting Diameter
20mm-200mm
Z axis height
160mm
Positioning precesion
0.02mm
Max. Output Power
1000w/1500w/2000w/2500w/3000w/4000w/6000w/8000w
Positioning Accuracy
0.05mm
Reposition Accuracy
0.04mm
Warranty
3 years
Machine Parts

Japan YASKAWA servo motor

Satellite gears are double-supported on hardened and group shafts with full-complement needle bearings increasing torsional stiffness.

Japan NSK bearing

These bearing housings have square flange which can beeasily attached to a machine with four bolts. With it's simple mounting face, this bearing unit is widely used.

Japan SMC Pneumatic Components

Stepless control of air pressure proportional to an electrical signal.
Serial communications specifications.
Compact/lightweight (Integrated communication parts).

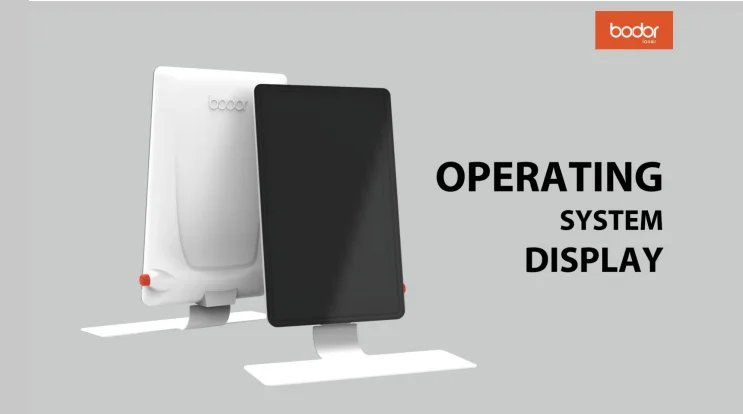

High definition display

.Equipped with a high definition display to bring a better use of the experience

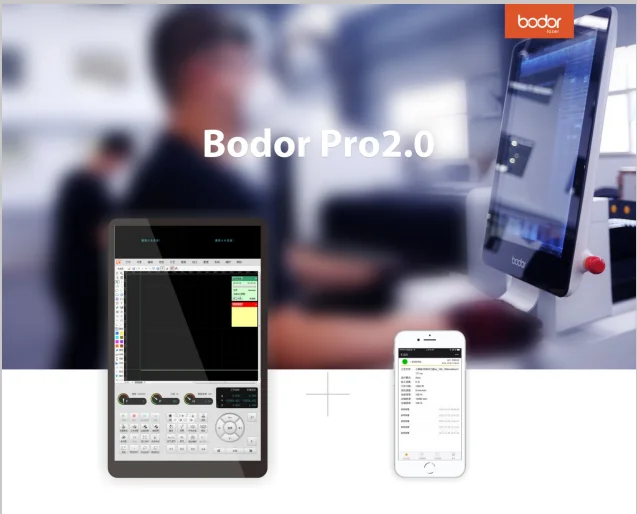

Bodor-Pro Operating System

Bodor always fous on self-innovation. From October, 2017, Bodor has lauched a new operating system which more compatiable the machine, provide customers more better using experience.

Central automatic lubrication system for guideway

Electrical lubrication is a kind of Gear pump with rational construction , great performance , complete functions.
Controlled by main machine system which could inspect the liquid level of the oil tank, the pressure of oil transportation , and setting the lubrication periodicity.
Effective avoid rust and ensure the cutting accuracy .

           Laser Source

           Optical fiber transmission, don't need to adjust the              laser path. IPG, Maxphotonics, nLight, Raycus fiber            source.

           Wavelength range:1070~1090nm

               Beam quality TEM00 (M2<1.8)
               Forced air/Water cooling
               More than 100000 hours work-life of pumped diode

Auto focus Bodor Gen Laser Head

Optimization of the optical configuration Smooth and efficient air flow design. Rotary Knob focus adjustment. More easy and flexible. Adjust range 20mm, accuracy:0.05mm.

Drawer style mirror stand, changing protect glass faster and more easily. Collimating lens and focal lens adopt compound lens, to obtain the optimal optical quality and the cutting effect.

All-Cast Machine Bed



More stable running performance.

More longer life than bending machine bed.

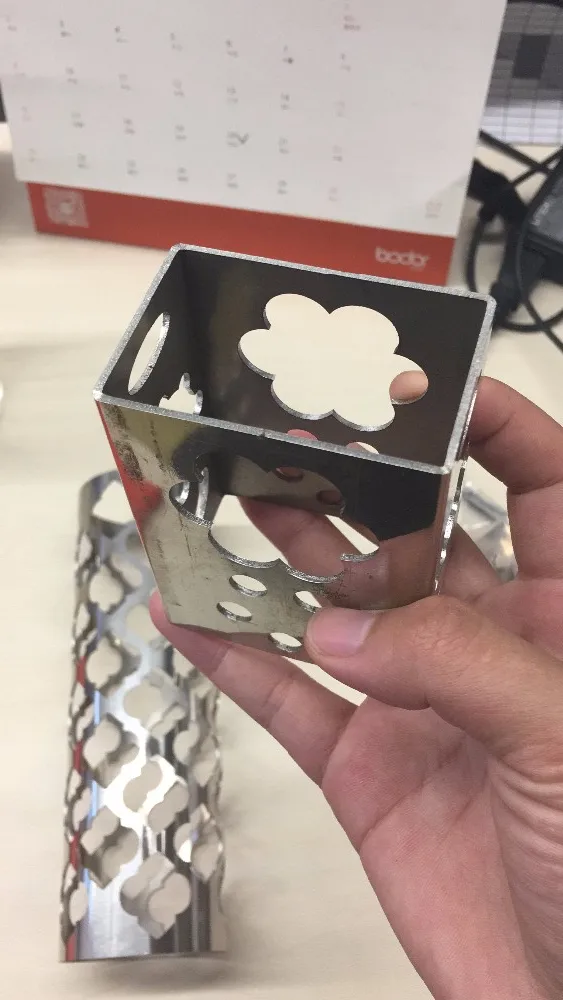

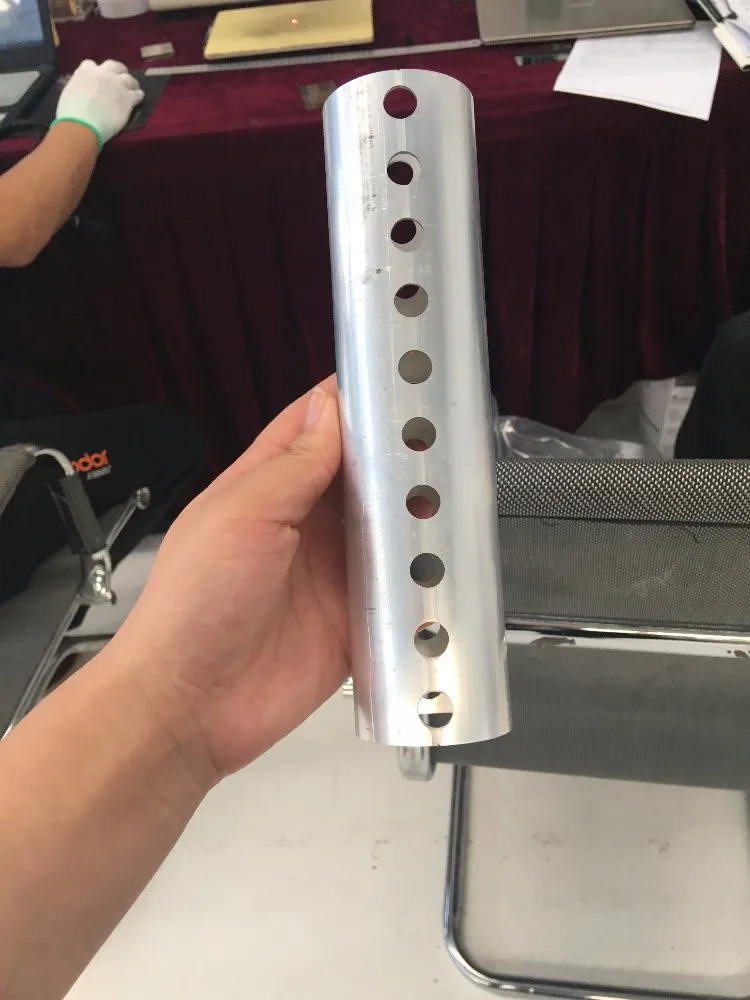

Samples show

Stainless steel cutting

Various Cutting Thickness

Carbon steel cutting

Stainless steel cutting

Stainless steel cutting

Packing & Delivery

>> Our Package Advantage:

1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.

    Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

About our company

>>>Brief Introduction Of Bodor Laser Listing Company

Jinan Bodor CNC Machine Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting, engraving and marking. All series machines are with Three-year's warranty. Also our service support various languages, like English, French, Arabic, Spanish, Russian, Korean, Portuguese, German and so on. Meanwhile, customized equipment are available according to different requirements.


Within the field, Bodor has passed CE and FDA qualifications. Moreover, Bodor has successfully practiced ISO quality system and 5S management, which assures high-efficient production and products' reliability. After years of hard work, Bodor's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc.. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, the self-motivated Bodor stuff, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional, branding, and International suppliers for various industrial solutions.

Quality and credit goes all the way. Bodor, a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.


>>View of Company Developing Process

-Founded in 2008.
-In 2008 we formally changed name to Bodor with RMB 10 million registered capital.
-Has developed to a Large-scale International Manufacturing company.
-More Accuracy, More Automatically and Higher Quality Products with Intimate After-sales Service
-Bodor Be The Leader Of Laser Industry
-Earn the Best Reputation and World-wide Trusted Customers.
-Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More Than 150 Countries.

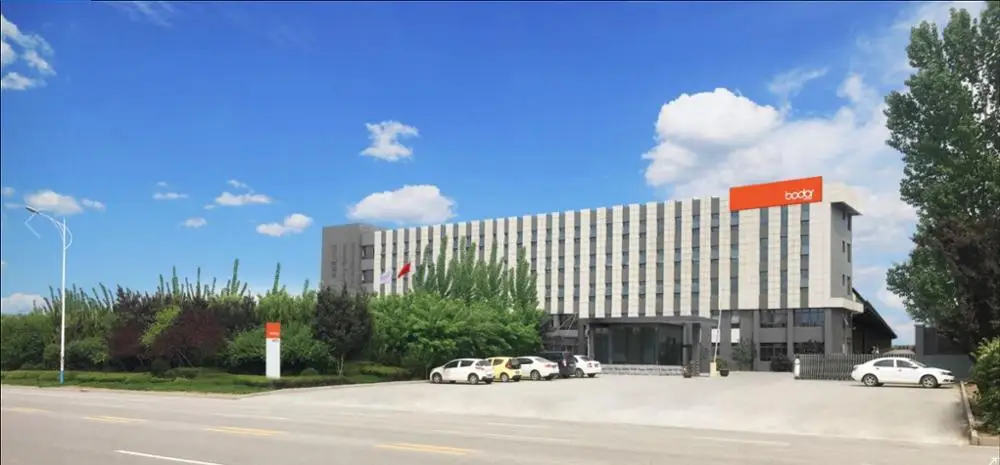

Company gate

WORKSHOP

Bodor Office

F Series

93% Response Rate

T Series

94.7% Response Rate

P Series
91.3% Response Rate

Service & FAQ

>>>Try to Read This -------Our Service

1. Guarantee for 3 years.
2. Maintenance free of charge for 3 years .
3. We will provide the consumable parts at an agency price.
4. 24 hours online service, free technical support.
5. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.

6. We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance..

>>>Try to Read This -------FAQ

1 -Does This Machine Pass CE Certificate?
-Yes, this machine passed European CE certificate and meet Safety Standard.

2 -How Long Time About Machine Warranty?
-Three years.

3 -Do You Have Agent Or Distributor In Our Country?
-There are so many end-users in your country, and we are looking for agent in your country, do you have any interest?

4 -Could You Ship The Machine To Our Address?
-Usually how to ship the machine, by sea, by air, by land or even by international express are considered, we will give you the best choice according to your address and model, even budget.
