China suppliers 1000W fiber laser cutter machine for metal, fabric laser cutting tube machine for brass

FOB Reference Price:Get Latest Price
$100,000.00 - $110,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
E3015T
Power(W):
1000w
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
3000*1500mm
Cutting Speed:
35m/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cutting Thickness:
Materials
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
BodorPro control system
Place of Origin:
Shandong, China
Brand Name:
Bodor
Certification:
CE, ISO, SGS
Warranty:
3 years
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Product name:
Fiber Laser Metal TUBE Cutting Machine
Laser head:
BodorGenius auto-focus laser head
Model:
E3015T
Working area:
3000*1500mm
Laser power:
1000w
Max. Moving Speed:
100m/min
Max. Cutting Speed:
35m/min
Positioning Accuracy:
0.03mm
Reposition Accuracy:
0.02mm
Supply Ability
Supply Ability:
50 Set/Sets per Month fiber stainless steel laser cutting machine
Packaging & Delivery
Packaging Details
fiber stainless steel laser cutting machine
standard wood case
Port
Qingdao
Video Description
Product Description

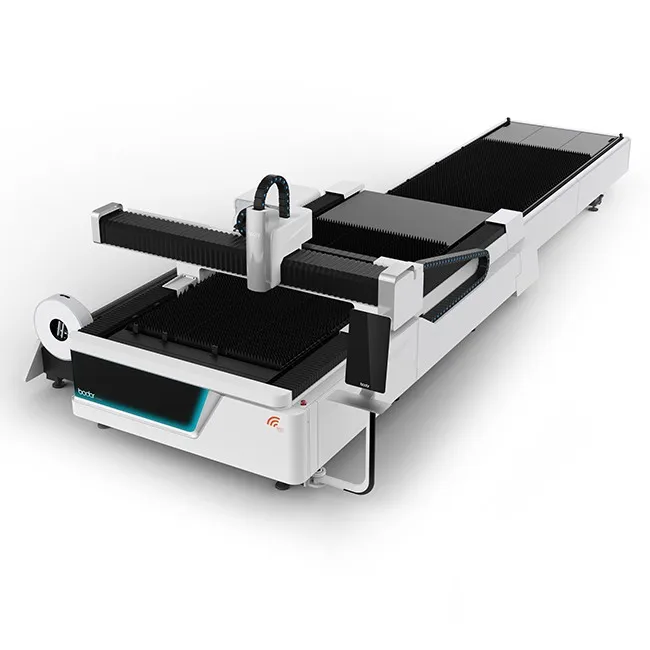

China suppliers 1000W fiber laser cutter machine for metal, fabric laser cutting tube machine for brass

Bodor fiber laser cutting machine E3015T sereis

Main Features

One machine for dual uses: Fiber cutting machine E-T model adds tube cutting function, meeting requirements for both plate metal and tube cutting. One machine for multiple uses.

* New cutting control system: Fiber laser cutting machine E-T model applies Bodor's newly developed control system BodorPro which is more stable than traditional cutting system.

Application of novel technology: Application of chuck, independently designed and developed by Bodor, is another example of novel technology that remarkably improves cutting precision and working efficiency.

Uniqueness: The sole manufacturer in China that applies gears for working platforms exchange, to ensure exchange speed and cutting precision.

Integrated casting machine body: with higher stability for higher precision

High-performance laser source and stable operating system: make the best cutting effect.

* Perfect cooling system, lubrication system and dust removal system: ensure that it can operate stably, efficiently and  durably.

* Automatic height adjustment: maintain constant focal length and stable cutting quality

* The specialized CAD / CAM automatic programming software & automatic nesting software: aim to maximally save raw materials.

Access to the CNC system through Ethernet interface: makes communication and remote monitoring possible during the laser cutting process.

Application:

Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc..

Application Materials:

Suitable for cutting carbon steel, stainless steel, aluminum, copper and alloy metal materials

Technical Parameters:

Model
E3015T
Working Area
3000*1500mm
Laser Output Power
4000w/3000w/2000w/1500w/1000w
Effective Pipe Cutting Diameter
Φ20-Φ200mm
Effective Pipe Cutting Length
3m/6m
X/Y/U-axis positioning accuracy
0.03mm
X/Y/U-axis repositioning accuracy
0.02mm
X/Y-axis Maximum Simultaneous Positioning Speed
140m/min
U-axis max.moving speed
30m/min

Name: Laser Source

Brand: IPG; Maxphotonics

Original: America; China

Wavelength range:1070~1090nm

Beam quality TEM00 (M2<1.8)

Forced air/Water cooling

More than 100000 hours work-life of pumped diode

Mains parts show

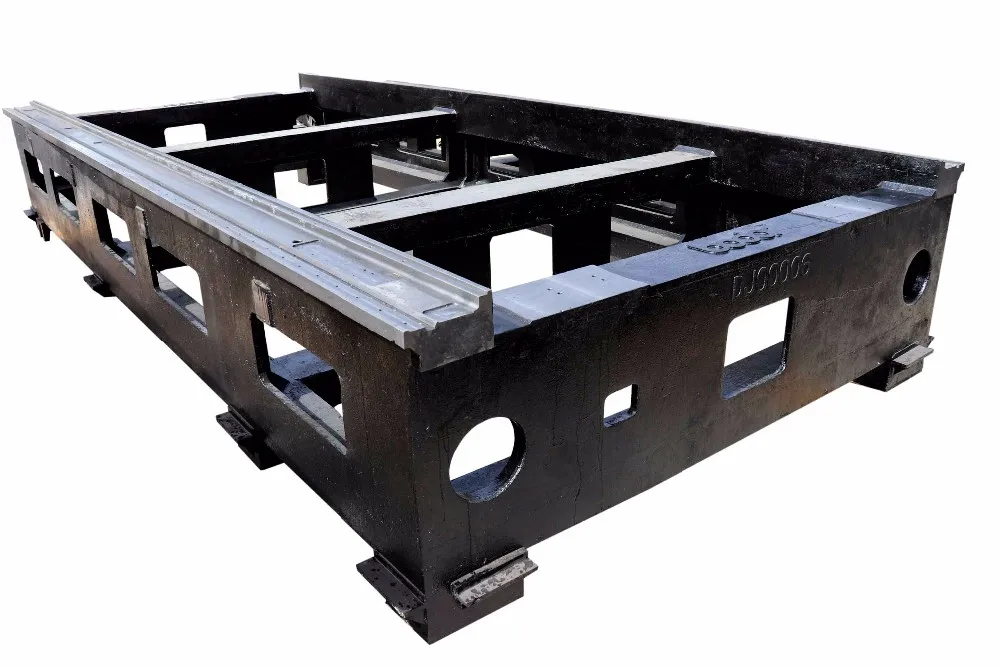

Integrated casting machine body

Machanical advantage:

More suitable material---Q235A
More adaptable process---intergrated casting
More reasonable structure---Apply mechanical propert.

Performance advantage:

Much more accuracy
Much more anti-stocking
15-20 years long life-time

Name: Laser Source

Brand: IPG; Maxphotonics

Original: America; China

Wavelength range:1070~1090nm

Beam quality TEM00 (M2<1.8)

Forced air/Water cooling

More than 100000 hours work-life of pumped diode

Name: Control Cabinet
Brand: Bodor
Original: China

For speedy service, we add WIFI function for our technician to operate troubleshooting and adjust parameters remotely.
Check laser source parameters to analyze failure causes.
Check cutting parameters to analyze and adjust new parameters.

Name: Servo Motor

Brand: Yaskawa

Original: Japan

The increased power demands of large automation components utilize the robust performance of SGM7G.


These servo motors are built with a compact footprint, yet provide a higher torque while maintaining an inertia rating well within the medium range.

Name: Electronic Component

Brand : Schneider

Original: France

Circuit protection against overload currents,
Breaking and industrial disconnection as per standards IEC/EN 60947-2.
Overvoltage resistance,
High performance limitation,

To fast closing independent of the speed of actuation of the toggle.

Name: pneumatic components

Brand: SMC

Original:Japan

Step less control of air pressure proportional to an electrical signal.

Serial communications specifications.

Compact/lightweight (Integrated communication parts).

Name: Bearings

Brand: NSK

Original: Japan

These bearing housings have square flange which can be easily attached to a machine with four bolts.


With its simple mounting face, this bearing unit is widely used.

Laser Cutting System

The software is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export, bridging, co-edge, beam compensation, curve smoothing, division, combination, automatic identification of exterior and interior modes and so on, compatible with laser source brands such as IPG, SPI, JK, Raycus, etc., capable of running for CO2 and YAG.

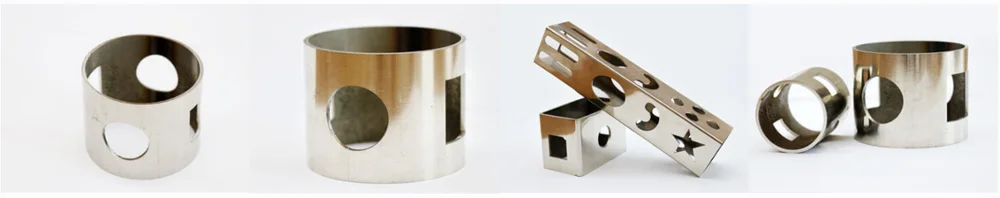

Samples show

Metal Cutting

Various Cutting Thickness

Carbon Steel cutting

Aluminum Cutting

Stainless Steel Cutting

About our company

>>>Brief Introduction Of Bodor Laser Listing Company

Jinan Bodor CNC Machine Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting, engraving and marking. All series machines are with Three-year's warranty. Also our service support various languages, like English, French, Arabic, Spanish, Russian, Korean, Portuguese, German and so on. Meanwhile, customized equipment are available according to different requirements.

Within the field, Bodor has passed CE and FDA qualifications. Moreover, Bodor has successfully practiced ISO quality system and 5S management, which assures high-efficient production and products' reliability. After years of hard work, Bodor's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc.. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, the self-motivated Bodor stuff, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional, branding, and International suppliers for various industrial solutions.

Quality and credit goes all the way. Bodor, a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

Our Office

Bodor's Factory

Honors of Bodor

BODOR laser always puts technological innovation as core power of company, after years of rapid development, BODOR obtained many intellectual property rights. Up to May 2017, BODOR obtained 16 patents, 3 software copyrights, and dozens technical patents were pending.

Exhibition Show

Packing & Delivery

>>> Our Package Advantage:

1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

Service&AFQ

>>>Try to Read This -------Our Service

1. Guarantee for 3 years.
2. Maintenance free of charge for 3 years .
3. We will provide the consumable parts at an agency price.
4. 24 hours online service, free technical support.
5. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6. We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance..

>>>Try to Read This -------FAQ

Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.


Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)which material you need to process?

2)How about their size max. and thickness max.?
