Autofeeder fiber laser cutter equipment price for cutting metal tube

FOB Reference Price:Get Latest Price
$110,000.00 - $120,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
T230A
Power(W):
1000w
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Metal, tube laser cutting
Laser Type:
Fiber Laser
Cutting Area:
6000mm
Cutting Speed:
35m/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, laser cutting
Cutting Thickness:
0-30mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Shandong, China
Brand Name:
Bodor
Certification:
CE, ISO, SGS, FDA,IAF
Laser Source Brand:
IPG/MAX
Laser Head Brand:
bodorgenius
Control System Brand:
bodorpro
Key Selling Points:
cast iron bed
Warranty:
3 years
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Advertising Company
Product name:
Autofeeder fiber laser cutter equipment price for cutting metal tube
Laser power:
1000W/1500W/2000W/3000W
Keyword:
tube laser cutting
Effective pipe cutting length:
6000m
Effective pipe cutting diameter:
20-200mm
Positioning Accuracy:
0.02mm
X axis:
250mm
Y axis:
6500mm/9500mm
Max loading:
400kg
Supply Ability
Supply Ability:
100 Set/Sets per Month tube cutting machine
Packaging & Delivery
Packaging Details
1Whole film packaging machine;
2Anti-collision package edge;
3Fumigation-free plywood wooden box with iron binding belt.
Port
Qingdao/Shanghai
Video Description
Product Description

Autofeeder fiber laser cutter equipment price for cutting metal tube


Applicable Fields


Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine

PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.


SPECIFICATIONS FOR T230

Model
option
T230 Tube and Pipe Fiber Laser Cutting Machine
Effective Cutting Length
6000mm
9000mm
Working Area Option
Effective Cutting Diameter
20-200mm
 X axis
250mm
Z axis
150mm
Main performance parameters
Positioning Accuracy
±0.02mm
Max Cutting Speed
35m/min
Max Move Speed
500m/s
Laser Source Power
1000W,1500W,2000W,3000W
Max Capacity
400kg
Machine Size
12000*180*2400mm 3800kg
Details


Product Application

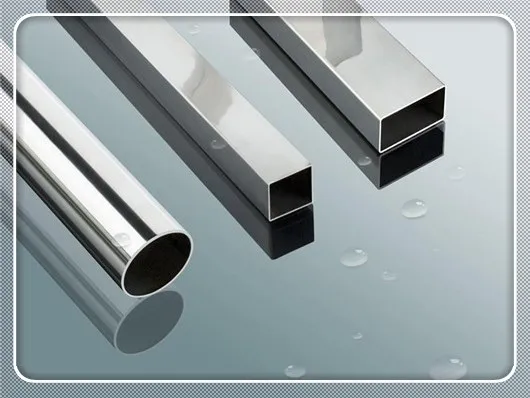

Application: It can cut pipe, squre tube, and various special-shaped pipe cutting.
Diameter for tube:20-200mm
Cutting length: 6m/9m etc
Cutting thickness with 500W fiber source: 3mm stainless steel, 6mm carbon steel, 2mm copper, 2mm aluminum etc, 2.5mm galvanised plate etc
.

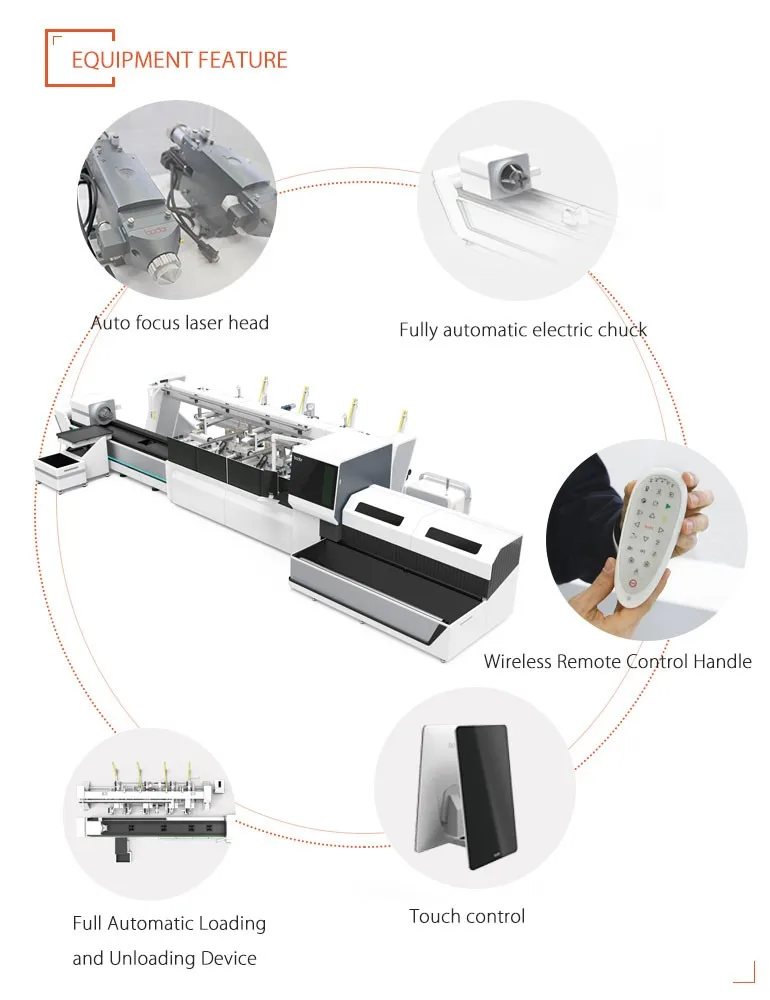

Features

1. Design of double electric chucks and double servo motors, apply to cut tube as round ,square, Rectangular tube, oval tube, I-beam, etc.
2. Pneumatic rolling wheel supporting design to ensure the turning stability during cutting.
3. High-performance laser source and stable operating system that make the best cutting effect.
4. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.
5. The machine can be used for cutting a variety of metals with excellent and stable cutting quality.
6. With a specialized CAD / CAM automatic programming software and automatic nesting software, it is possible to maximally g save raw materials.
7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.

Machine Parts

Franch Schneider servo motor

Satellite gears are double-supported on hardened and group shafts with full-complement needle bearings increasing torsional stiffness.

Japan NSK bearing

These bearing housings have square flange which can beeasily attached to a machine with four bolts. With it's simple mounting face, this bearing unit is widely used.

Japan SMC Pneumatic Components

Stepless control of air pressure proportional to an electrical signal.
Serial communications specifications.
Compact/lightweight (Integrated communication parts).

Franch MOTOREDUCER Reducer

Satellite gears are double-supported on hardened and ground shafts with full-complement needle bearings increasing torsional stiffness.
Backlash ≤ 3 arcmin.
Standard operating temperature range is -15℃ to 45℃.
Protection rated IP 65 standard.

Franch Schneider electronic parts and components

Circuit protection against short-circuit currents, Circuit protection against overload currents, Breaking and industrial disconnection as per standards IEC/EN 60947-2.
Overvoltage resistance,
High performance limitation,
To fast closing independent of the speed of actuation of the toggle

Central automatic lubrication system for guideway

Electrical lubrication is a kind of Gear pump with rational construction , great performance , complete functions.
Controlled by main machine system which could inspect the liquid level of the oil tank, the pressure of oil transportation , and setting the lubrication periodicity.
Effective avoid rust and ensure the cutting accuracy .

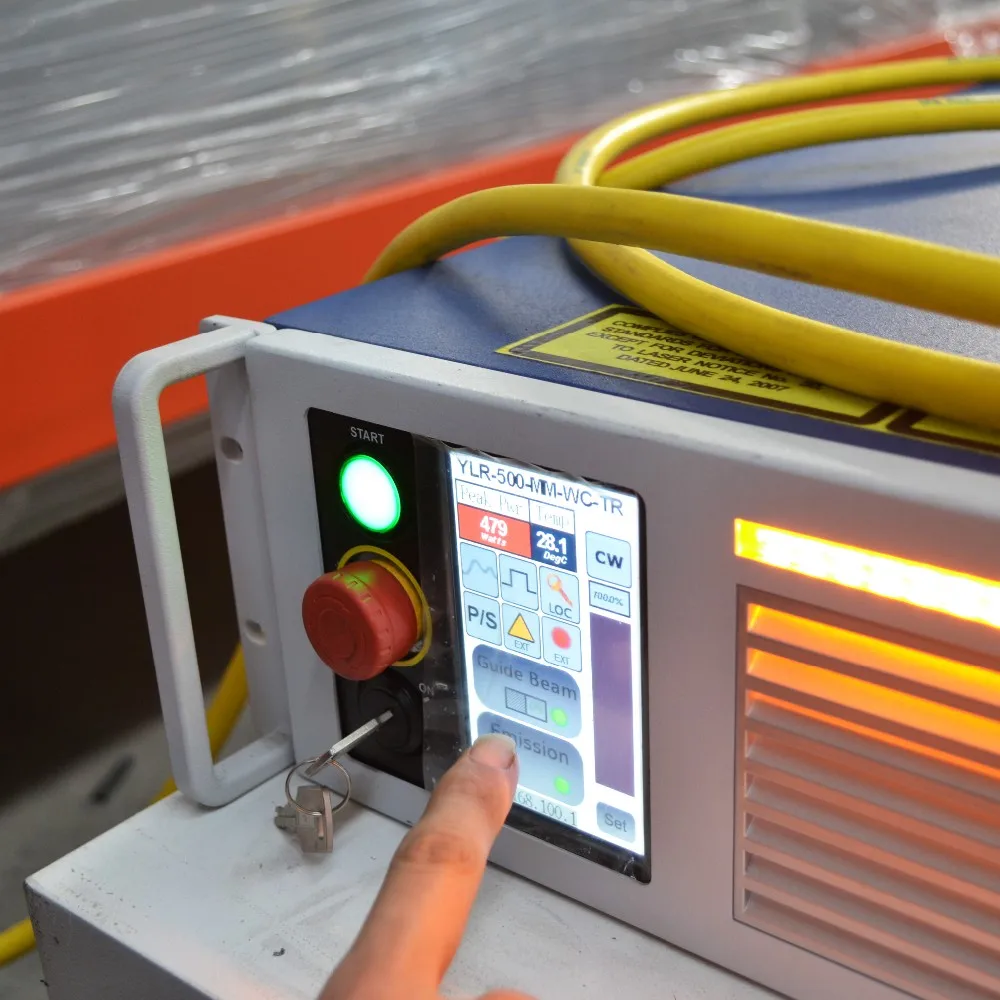

           Laser Source

           Optical fiber transmission, don't need to adjust the              laser path. IPG, Maxphotonics, nLight, Raycus fiber            source.

           Wavelength range:1070~1090nm

               Beam quality TEM00 (M2<1.8)
               Forced air/Water cooling
               More than 100000 hours work-life of pumped diode

Switzerland RAYTOOLS Laser Head

Optimization of the optical configuration Smooth and efficient air flow design. Rotary Knob focus adjustment. More easy and flexible. Adjust range 20mm, accuracy:0.05mm.

Drawer style mirror stand, changing protect glass faster and more easily. Collimating lens and focal lens adopt compound lens, to obtain the optimal optical quality and the cutting effect.

All-Cast Machine Bed



More stable running performance.

More longer life than bending machine bed.

Samples show

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine

PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Beverage bottle, cosmetic bottle, medicine bottle, jar etc.

Lorem Ipsum is simply dummy text of the printing and typesetting industry. Lorem Ipsum has been the industry's standard dummy text ever since the 1500s, when an unknown printer took a galley of type and scrambled it to make a type specimen book.

Packing & Delivery

>> Our Package Advantage:

1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.

    Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

About our company

>>>Brief Introduction Of Bodor Laser Listing Company

Jinan Bodor CNC Machine Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting, engraving and marking. All series machines are with Three-year's warranty. Also our service support various languages, like English, French, Arabic, Spanish, Russian, Korean, Portuguese, German and so on. Meanwhile, customized equipment are available according to different requirements.


Within the field, Bodor has passed CE and FDA qualifications. Moreover, Bodor has successfully practiced ISO quality system and 5S management, which assures high-efficient production and products' reliability. After years of hard work, Bodor's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc.. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, the self-motivated Bodor stuff, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional, branding, and International suppliers for various industrial solutions.

Quality and credit goes all the way. Bodor, a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

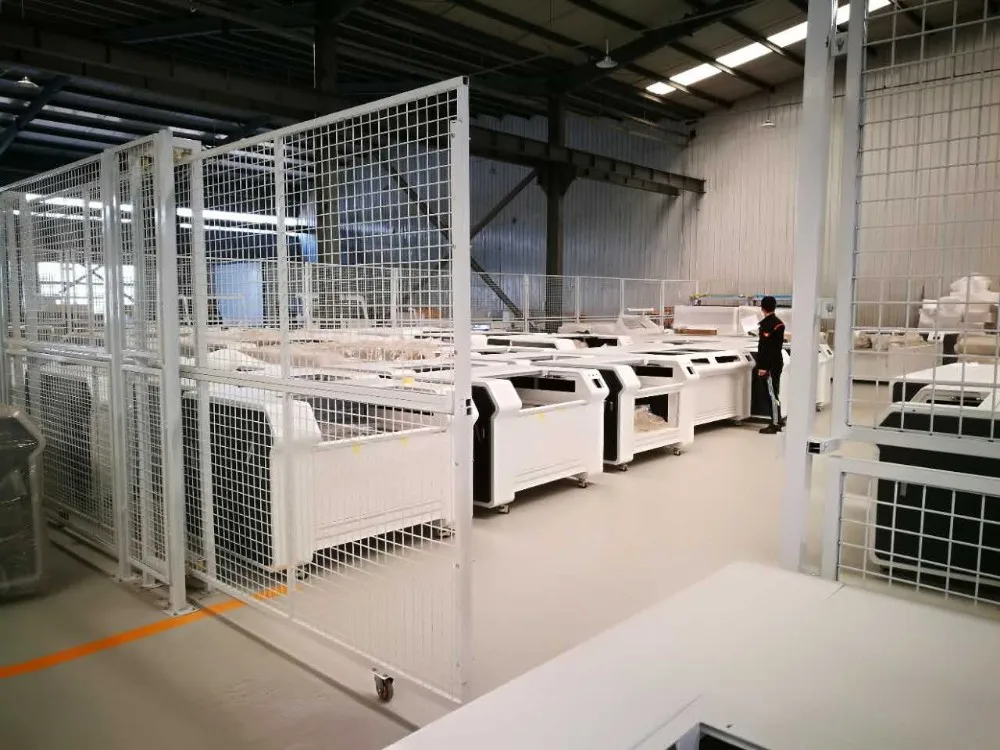

Part of Workshop


Office


List of Bodor main products

F Series

93% Response Rate

i5 Series

94.7% Response Rate

P Series
91.3% Response Rate

FAQ

Q: What material do you want to cut? Carbon steel ? SS? Aluminum? Copper?


Q: What's the shape of the tube/pipe? Round? Square tube?

Q: What's  the length of the tube?__mm*__mm.


Q: What's the diameter of tube?__mm?


After your return comments, we will send you more information about the machine along price . Thanks.
