Chinese bodor laser 1000w cnc metal laser cutting machine cut tube and pipe cutting machine

  • 1 - 1 Sets
    $95,000.00
  • >=2 Sets
    $92,000.00
Model Number:
E3015T
Power(W):
1000w
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
3000*1500mm
Cutting Speed:
30m/min
Graphic Format Supported:
AI, BMP, DST, DXF, DXP
Cutting Thickness:
0-30mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Bodor Pro
Place of Origin:
Shandong, China
Brand Name:
Bodor
Certification:
CCC, CE, GS, ISO, SGS, UL
Laser Source Brand:
IPG/MAX
Laser Head Brand:
bodorgenius
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Beckhoff
Key Selling Points:
exchange platform
Warranty:
3 years
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Advertising Company
Product name:
Fiber Laser Metal Cutting Machine
Laser head:
BodorGenius auto-focus laser head
Keyword:
cutting metal machine
Model:
E1530T
Laser power:
1000W / 2000W / 3000W/4000W
Working area:
3000*1500mm
Max Cutting Speed:
35m/min
Reposition Accuracy:
0.02mm
Min Line Width:
0.1mm
Supply Ability
Supply Ability:
300 Set/Sets per Month laser cut corten steel
Packaging & Delivery
Packaging Details
standard fiber laser metal cutting machine wood cases
Port
Qingdao
Video Description
Product Description

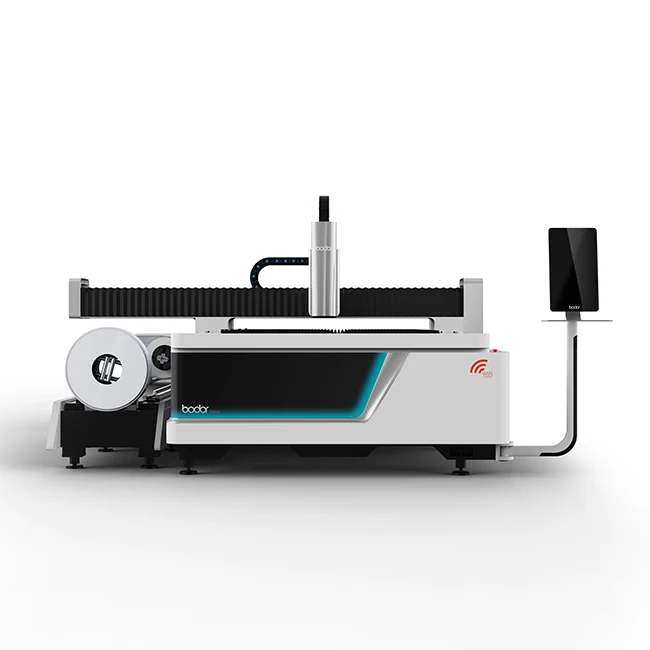

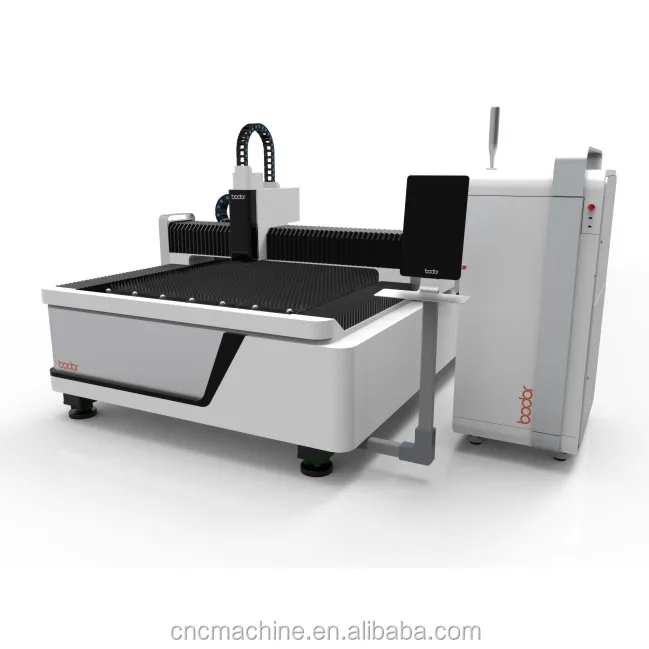

Chinese bodor laser 1000w cnc metal laser cutting machine cut tube and pipe cutting machine

Bodor fiber laser cutting machine E series

Main Feature

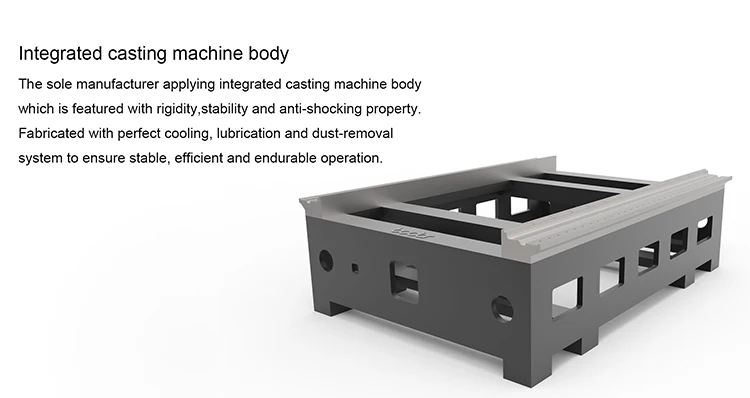

1. Integrated casting machine body with higher stability for higher precision

2. High-performance laser source and stable operating system which make the best cutting effect.

3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.

4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.

6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.

7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.

Application:

Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc..
Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
Application Materials:

Suitable for cutting carbon steel, stainless steel, aluminum, copper and alloy metal materials.

Technical Parameters

Model
E3015T
Option
Working Area
3000*1500mm
According to demands
Laser Power
1000w/1500w/2000w/2500w/3000w/4000w
Max. Moving Speed
100m/min
Max. Cutting Speed
300mm/s
Positioning Accuracy
0.03mm
Reposition Accuracy
0.02mm
Min. line width
0.1mm

Mians parts show

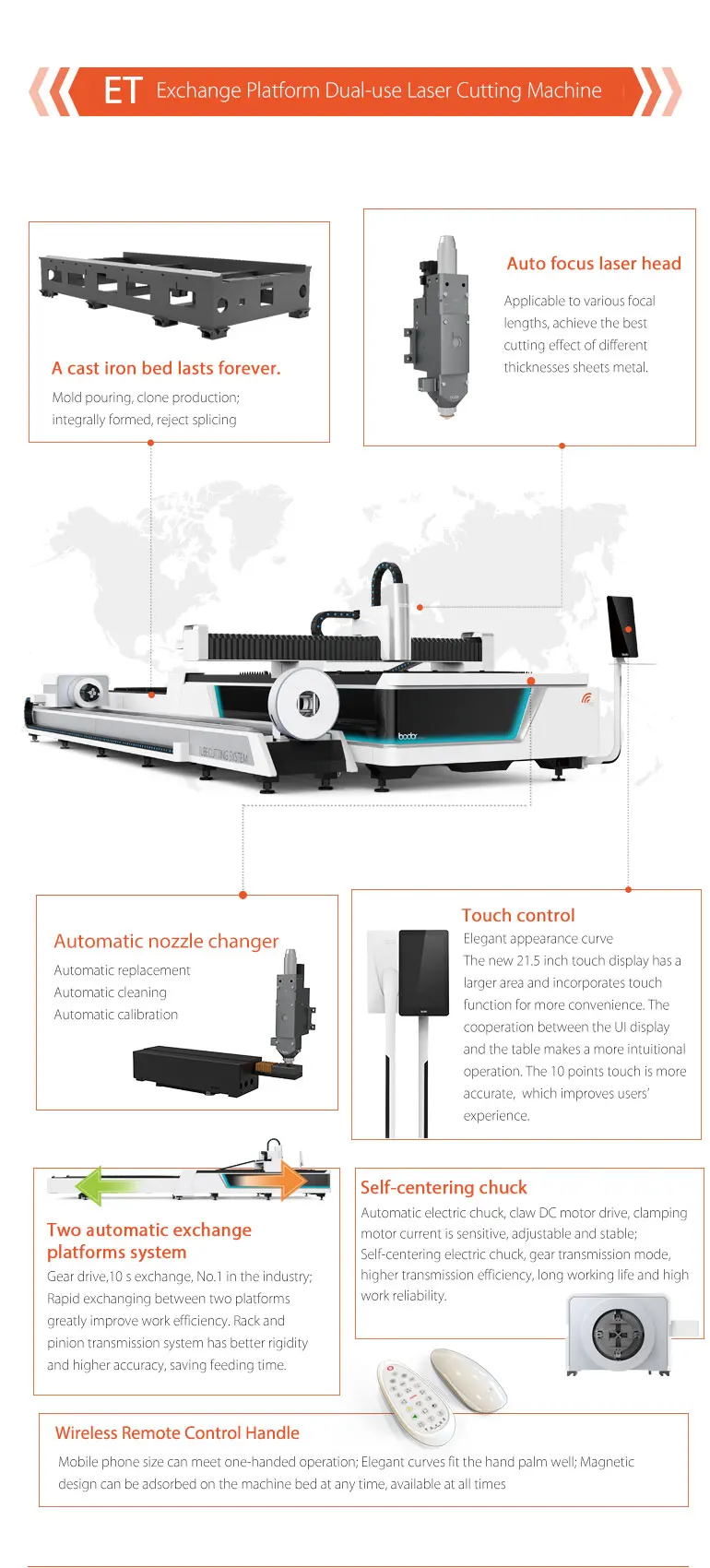

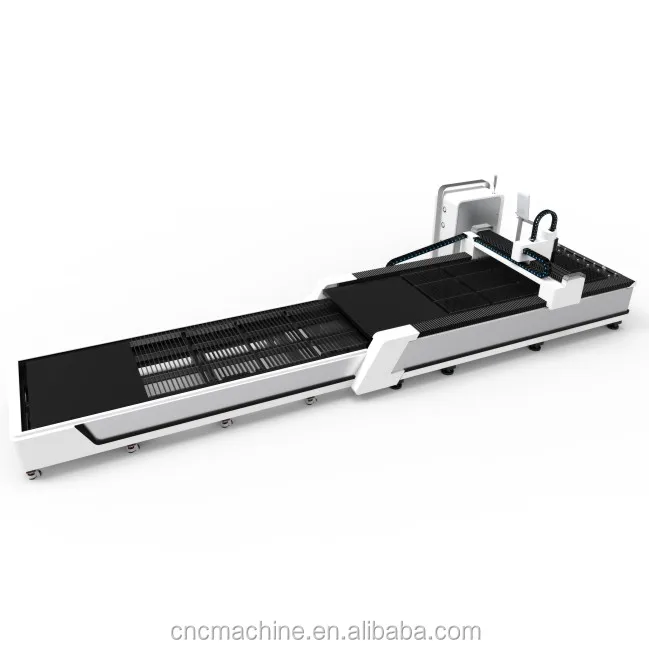

Automatic exchange platform

Fiber cutting machine E model, featured with two automatic exchange platform, improves work efficiency and saves time consumption.

Machine body protection

Reasonable rack arrangement on top of the platform, maximumly reduce damage towards the machine body and ensure its service life to the largest extent.

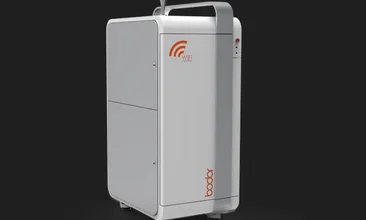

WIFI Wireless Control

For speedy service, we add WIFI function for our technician to operate troubleshooting and adjust parameters remotely.
Check laser source parameters to analyze failure causes.

Check cutting parameters to analyze and adjust new parameters.

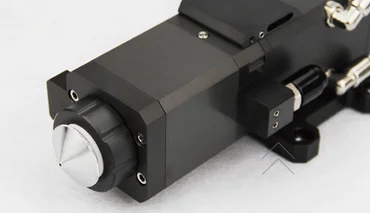

Switzerland RAYTOOLS Laser Head

Rotary Knob type focus point adjustment for fine and flexible adjustment. Adjustable range: 20mm, accuracy: 0.05mm.
Drawer type mirror seat to make protect glass replacing faster and easier.
Both collimating lens and focal lens could apply compound lens for optimal optical quality and cutting result.
Modular design with optional collision-proof protective devices or pneumatic knife to realized swiftly switch between welding and cutting.
Optional magnetic collision-proof protective modular that would activate reliable separation and immediately light off in case of collision.

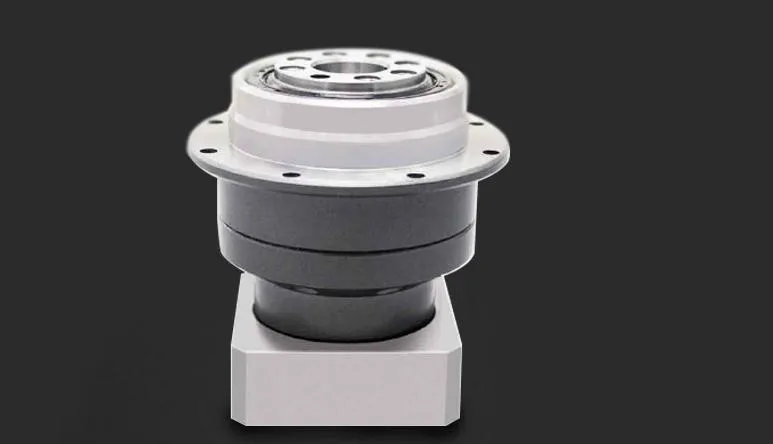

France MOTOREDUCER

Satellite gears are double-supported on hardened and ground shafts with full-complement needle bearings increasing torsional stiffness.

Backlash ≤ 3 arcmin.

Standard operating temperature range is -15℃ to 45℃.

Protection rated IP 65 standard.

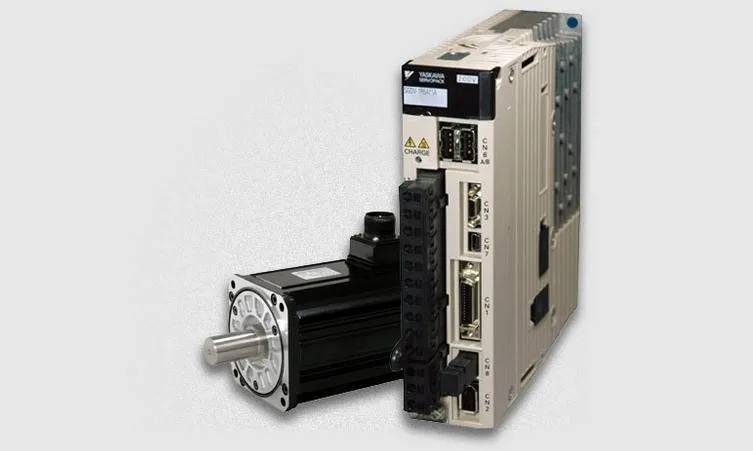

Japan Yaskawa Servo Motor


The increased power demands of large automation components utilize the robust performance of SGM7G.

These servo motors are built with a compact footprint, yet provide a higher torque while maintaining an inertia rating well within the medium range.

France Schneider Electronic Component


Circuit protection against overload currents,
Breaking and industrial disconnection as per standards IEC/EN 60947-2.
Overvoltage resistance,
High performance limitation,

To fast closing independent of the speed of actuation of the toggle.

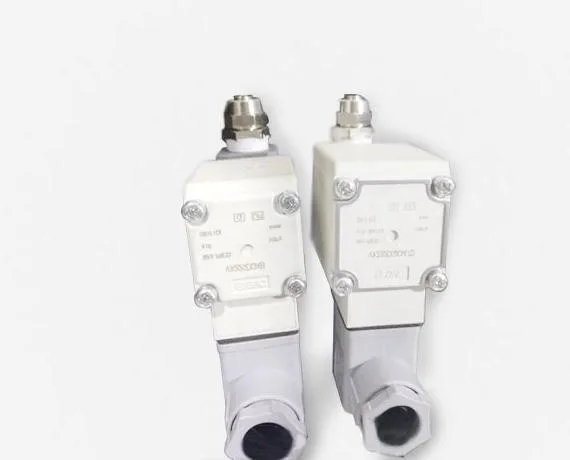

Japan SMC pneumatic components


Stepless control of air pressure proportional to an electrical signal.

Serial communications specifications.

Compact/lightweight (Integrated communication parts).

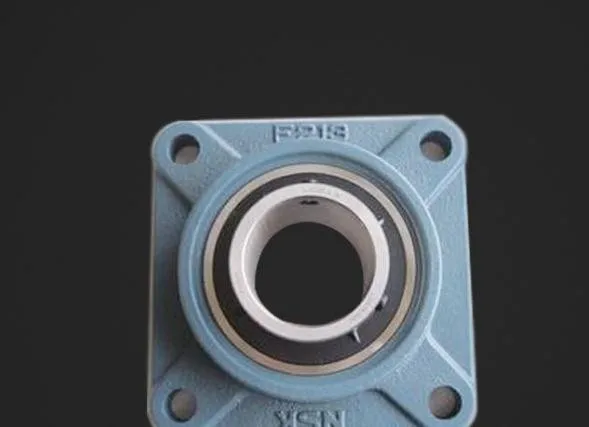

Japan NSK Bearings


These bearing housings have square flange which can be easily attached to a machine with four bolts.

With its simple mounting face, this bearing unit is widely used.

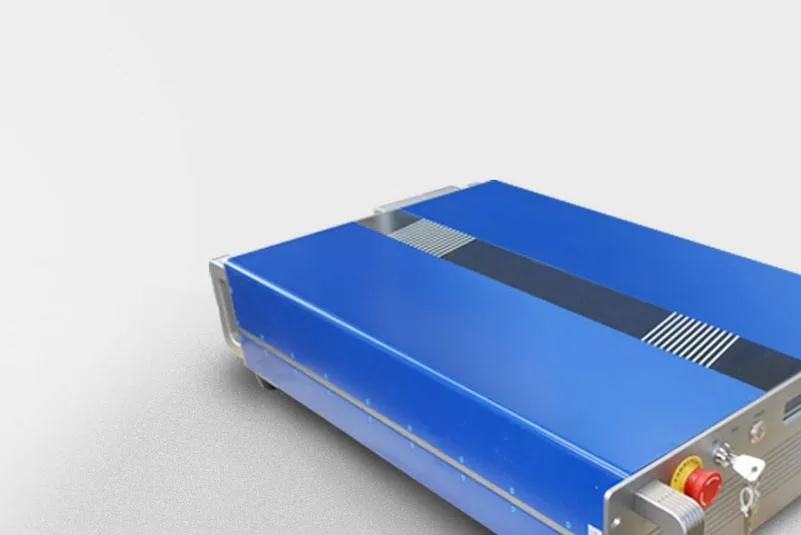

Laser Source


Wavelength range:1070~1090nm

Beam quality TEM00 (M2<1.8)

Forced air/Water cooling

More than 100000 hours work-life of pumped diode

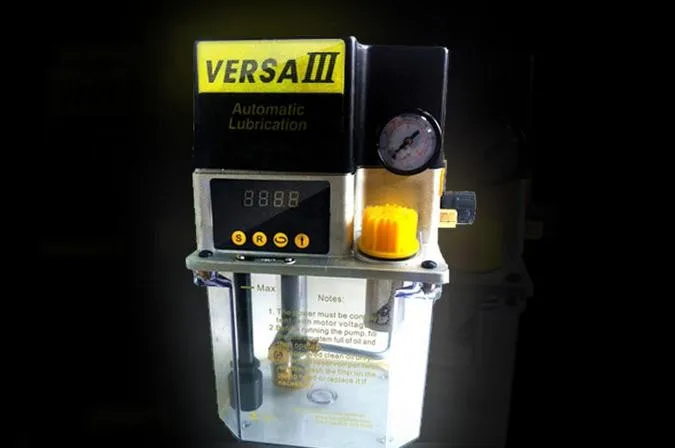

Automatic Lubrication System

Electrical lubrication is a kind of gear pump with rational construction, great performance and comprehensive functions.

By connection with program control system in the main machine, the lubrication system could oversee oil level within tank as well as oil transmission pressure and set lubrication periodicity, which will effectively prevent rust within lubrication system to ensure cutting accuracy

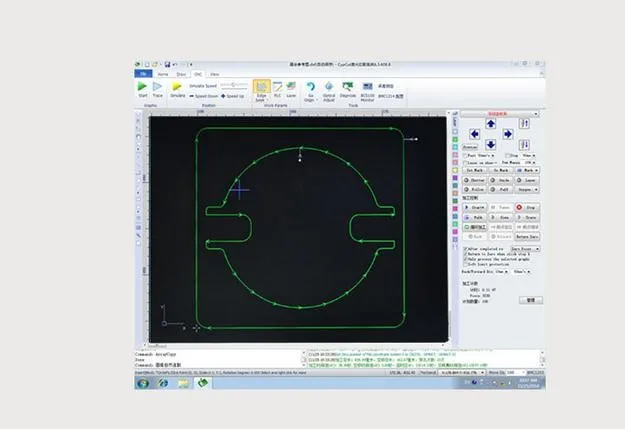

Laser Cutting System


The software is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export, bridging, co-edge, beam compensation, curve smoothing, division, combination, automatic identification of exterior and interior modes and so on, compatible with laser source brands such as IPG, SPI, JK, Raycus, etc., capable of running for CO2 and YAG.

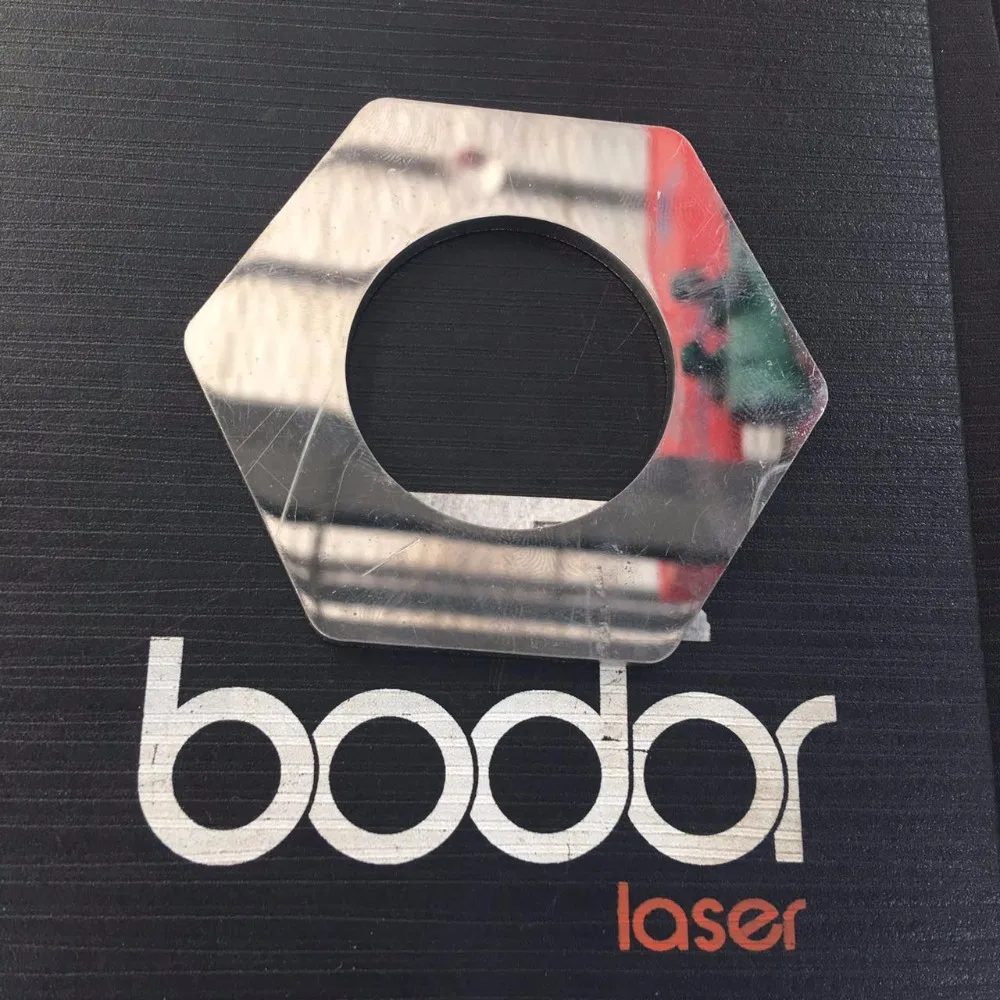

Samples show

Carbon steel cutting

Various Cutting Thickness

Carbon steel cutting

Aluminum Cutting

Stainless steel cutting

Packing & Delivery

>>> Our Package Advantage:

1. Our Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2. All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.
Avoiding all damages that could happen in the delivery process.Then we’ll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3. The outmost is Wooden Case With Fixed Formwork.
4. The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

About our company

>>>Brief Introduction Of Bodor Laser Listing Company

Jinan Bodor CNC Machine Co., Ltd. specializes in R&D and production of various laser equipment, such as laser cutting, engraving and marking. All series machines are with Three-year's warranty. Also our service support various languages, like English, French, Arabic, Spanish, Russian, Korean, Portuguese, German and so on. Meanwhile, customized equipment are available according to different requirements.

Within the field, Bodor has passed CE and FDA qualifications. Moreover, Bodor has successfully practiced ISO quality system and 5S management, which assures high-efficient production and products' reliability. After years of hard work, Bodor's products have made presence in more than 100 Countries such as North America, West Europe, South Asia, South America and Mid East etc.. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, the self-motivated Bodor stuff, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional, branding, and International suppliers for various industrial solutions.

Quality and credit goes all the way. Bodor, a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.

Gate of our company

Our Office

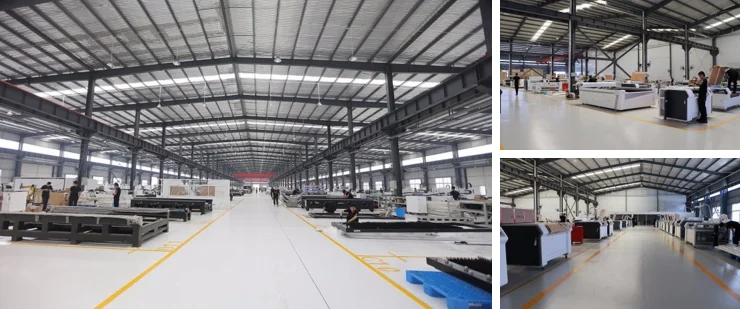

Bodor's Factory

Honors of Bodor

BODOR laser always puts technological innovation as core power of company, after years of rapid development, BODOR obtained many intellectual property rights. Up to May 2017, BODOR obtained 16 patents, 3 software copyrights, and dozens technical patents were pending.

Exhibition Show

Service&AFQ

>>>Try to Read This -------Our Service

1. Guarantee for 3 years.
2. Maintenance free of charge for 3 years .
3. We will provide the consumable parts at an agency price.
4. 24 hours online service, free technical support.
5. Machine has been adjusted before delivery, operation disk is included in the delivery. If there is any other questions, pls kindly tell me.
6. We have manual instruction and CD (Guiding Videos) for software Installation, operation and machine's using and maintenance..

>>>Try to Read This -------FAQ

Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.


Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information
1)which material you need to process?

2)How about their size max. and thickness max.?
