Bodor Brand F Series 3015 CNC Fiber Laser Cutting Machine metal sheet cnc laser cutting machine for sale

  • 1 - 1 Sets
    $70,000.00
  • 2 - 2 Sets
    $65,000.00
  • >=3 Sets
    $60,000.00
Model Number:
F3015
Power(W):
1000W
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
3000*1500mm
Cutting Speed:
100m/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cutting Thickness:
0-25mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Bodorpro 2.0
Place of Origin:
Shandong, China
Brand Name:
Bodor
Certification:
CE, ISO, GS, SGS, UL, CCC, FDA
Laser Source Brand:
IPG/MAX
Laser Head Brand:
bodor genies
Control System Brand:
bodor pro
Key Selling Points:
High-accuracy
Warranty:
3 years, 36 Months
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
Applicable Industries:
Building Material Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining, industry
Laser source:
Maxphotonics or IPG
Reposition Accuracying:
0.02mm
Position Accuracying:
0.03mm
Max Moving Speed:
100m/min
Min line width:
0.1mm
Dimension:
4550*2300*2000mm
Weight:
5200kg ( Casting iron bed )
Product Certification certification
CE Certified.
Valid from 2019-06-12 until 2049-12-31
Supply Ability
Supply Ability:
140 Set/Sets per Month
Packaging & Delivery
Packaging Details
1Our wooden case is after fumigation treatmentNeedn't timber inspection,saving shipping time
2All the spare parts of the machine were covered by some soft materials,mainly using pearl wool
Avoiding all damages that could happen in the delivery processThen we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof
3The bottom of the wooden case has firm iron jack,convenient to Handling and transport
Port
QINGDAO
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Bodor Laser F3015


Bodor Brand F Series 3015 CNC Fiber Laser Cutting Machine

Product Name
F3015
Material

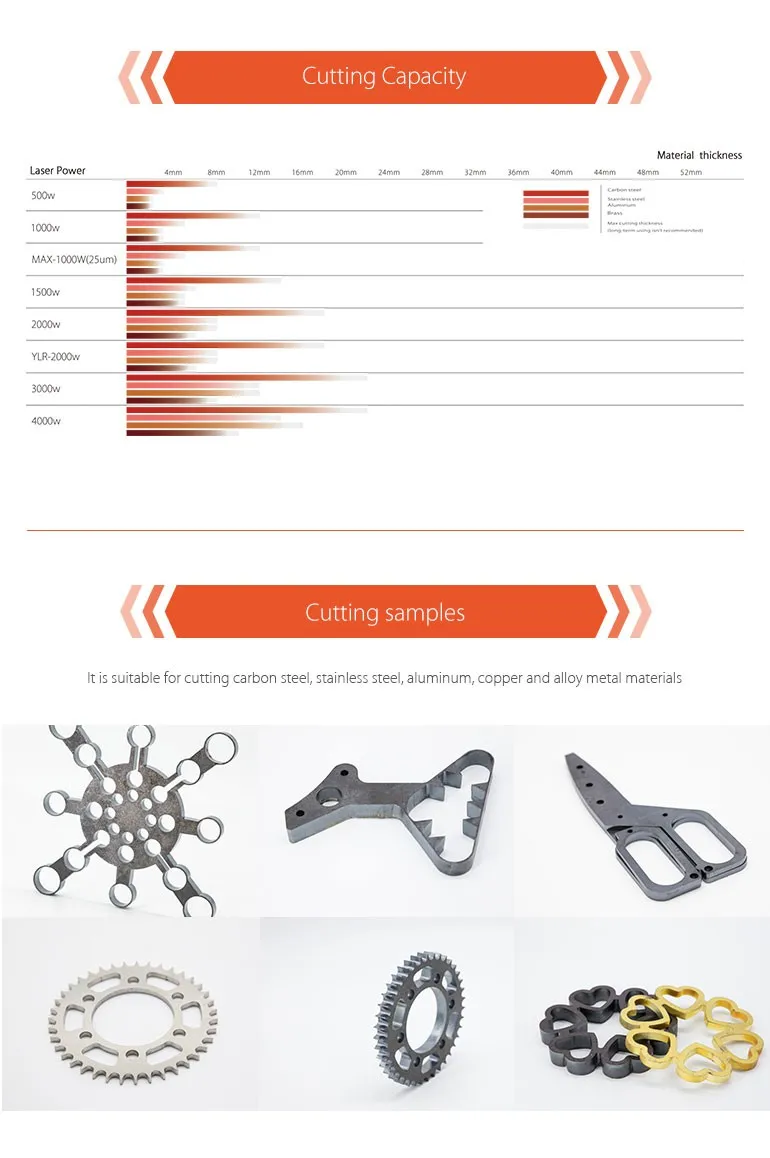

Carbon steel, Stainless steel, Aluminium, Brass and other kinds of metal
Thickness
0-25mm
Laser output power
1000w
Standard Equipment
1) Machine (Casting iron bed) - 1 piece
2) PC system and screen - 1 piece
3) Laser source - 1 piece
4) Water chiller - 1 piece
5) Electric cabinet - 1 piece
6) Controller - 1 piece
7) Exhaust system- 1 piece
8) Software Bodorpro 2.0 in English (or other language like Russian ...) - 1 piece
9) Toolbox - 1 piece
10) Anti-Laser Glasses - 1 piece
Delivery time
60 workdays
Payment term
30% T/T advance, 70%T/T before shipment
Warranty
36 months

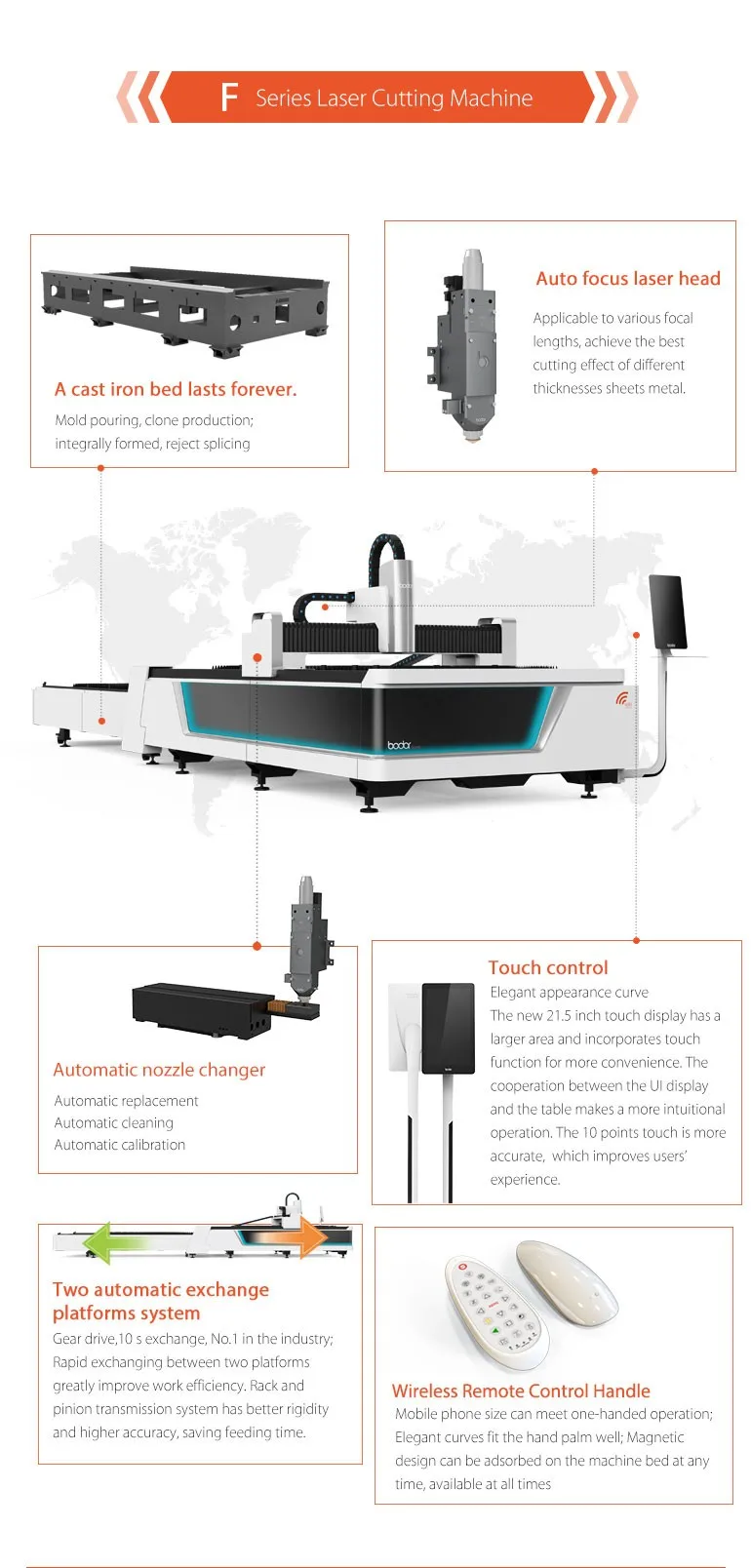

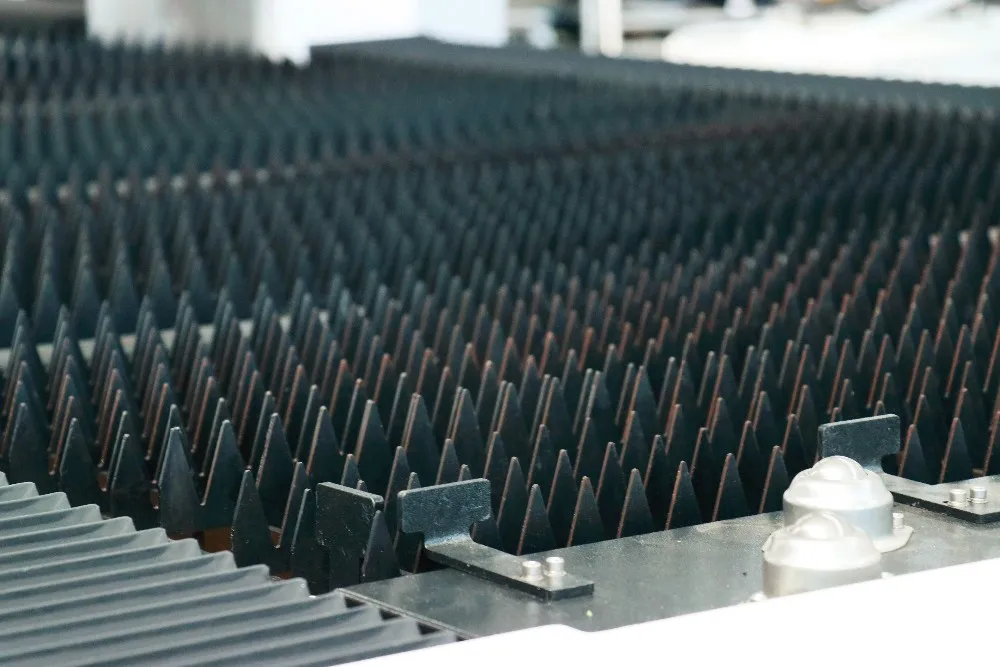

Products Show

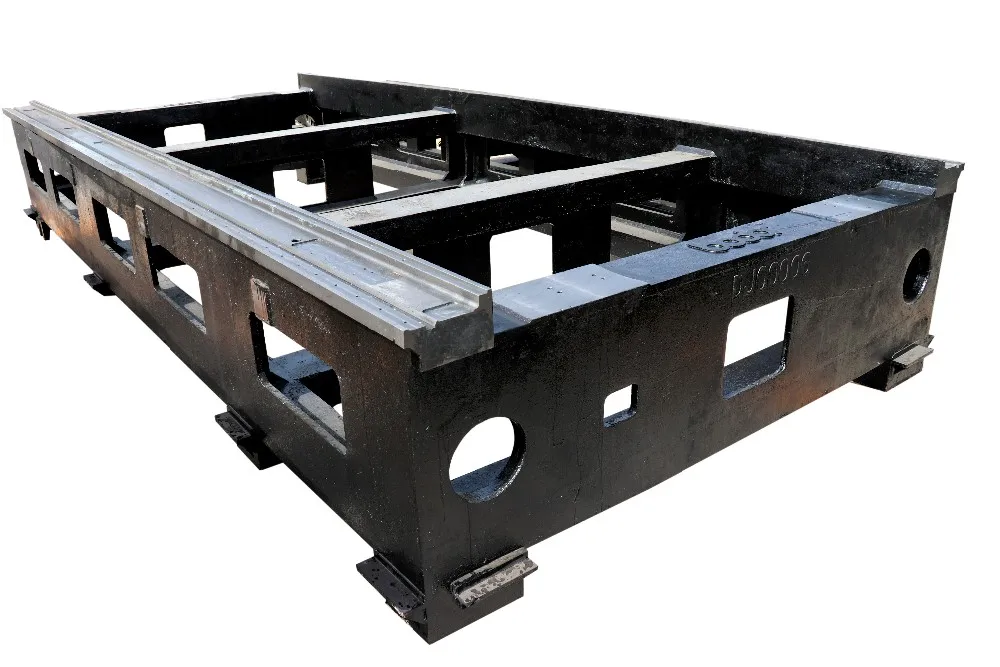

Integrated casting machine body

The sole manufacturer applying integrated casting machine body which is featured with rigidity, stability and anti-shocking property. Fabricated with perfect cooling, lubrication and dust-removal system to ensure stable, efficient and endurable operation.

Cutting precision improvement

Black acrylic case, for protection of cutting head and pressure relief towards the beam, combined with Switzerland cutting head, effectively improve cutting precision.

Simple&convenient operation

Characterized CAD/CAM automatic programming and nesting software for sake of maximum material saving. Communication with control system directly via WIFI, distant communication and supervise for the laser cutting process.


Bodorpro 2.0


BodorPro2.0 laser cutting system is researched and developed by BODOR laser independently, and it is an updated version of BodorPro1.0. Adhering to "simple, acme, fast", we added some unique features to the system to make it more stable, smooth and efficient.

The whole interface rejected the previous old-fashioned style. It is more affectionate, closer to the needs of users, at the same time it pays more attention to the user experience!

BodorPro2.0 adopted double camera for the full surrounded series, gathering processing interface and monitor interface at one. We can see internal cutting situation at any time during the cutting process. The software supports the import of standard G code, DXF, PLT, ENG files, and manual and automatic typesetting. It is equipped with PM95A control card, NC65C integrated machine, Lambda5E and EX30A +SE001.

Registration through mobile phone is convenient, fast and safe.One software with two configurations, plane cutting and tubing cutting can freely switch. It adopted the basic architecture of windows platform and fully inherited operating habits of office, reducing the operator's threshold.

Technical Parameters
Model
F3015 (3000*1500mm)
Laser power
1000w (>4000w S series - S2040)
Specification
1. Laser source IPG / Maxphotonics
2. Casting iron machine bed
3. Wifi control systerm
4. RAYTOOLS laser head by Swiss design
5. Japan YASKAWA servo motor
6. Japan SMC pneumatic components
7. Taiwan HIWIN square track
8. France MOTOREDUCER reducer
9. France Schneider electron component
10. Japan NSK bearing
11. Automatic lubrication system
12. Water chiller
13. Exhaust system
14. Software Bodorpro 2.0
Our Service

24 hour online service

* Inquiry and consulting support.
* Sample testing support.
*We offer free training in our factory, welcome to visit and learn more about our machines.

*Multi-language support

3 years Warranty

* We have the high quality machine

* We provide 3 years warranty, leading the whole industry

* Our agent help us to make a perfect after-sales service system

Training and maintenance

Engineers available to service machinery overseas.

Our Company

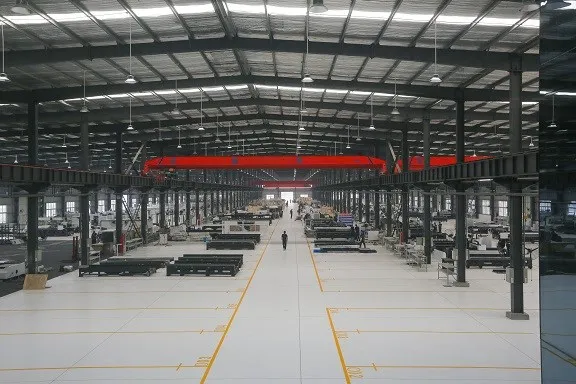

Our Factory

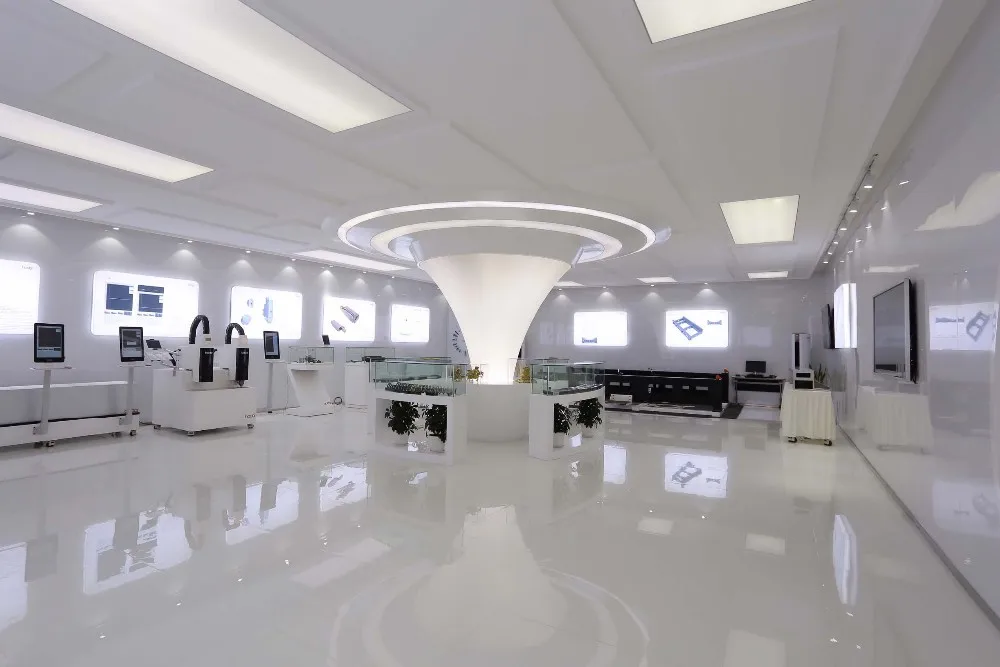

Our Showroom


About Bodor

Jinan Bodor CNC Machine Co.,Ltd was founded in 2002.In 2008 we formally changed name to Bodor with RMB 10 million registered capital.For 13 years,Bodor laser has always been devoted in studying and manufacturing laser cutting,engraving and marking etc.
With all Bodor staff persistence and hard working, Bodor laser has developed to a large-scale international manufacturing company. More accuracy,more automatically and higher quality products with intimate after-sales service enables Bodor be the leader of laser industry.Suitable services for customers, 2-year warranty products,standard scientific management make bodor earn the best reputation and word-wide trusted customers.
For 13 years, Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More than 80 countries. Bodor lasers will try our best to serve for you suitable laser solutions. Welcome you to join Bodor family,share top laser products and services together with word-wide customers.

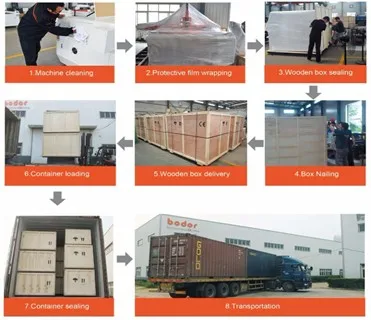

Packing & Delivery
Packaging
Size
4550*2300*2000  (L*W*H) -- 20GP
Weight
5200kg +
Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

We can send machine to your port or door address by sea or airplane.
Please kindly tell us your near port or address with postcode.
We have reliable shipping agent to insure the safe,convenient and timely delivery.

Our Certifications
FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: Which material can be processed by your fiber laser cutting machine?

A: Carbon steel, Stainless steel, Aluminium, Brass and others

Q: Do you any options for the F3015?

A: Yes, we have some other series products, like

1) F3015T (for sheet steel and steel pipe)

2) F3015P (with the protective cover)

3) E3015 (with the exchange table)

4) P3015, S3015 and ...

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
