Factory direct sell bodor fiber cnc laser metal cutting machine with double working table

  • 1 - 1 Sets
    $81,000.00
  • >=2 Sets
    $78,000.00
Model Number:
E3015
Power(W):
1000w
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
3000*1500mm
Cutting Speed:
35m/min
Graphic Format Supported:
AI, BMP, DST, DXF, DXP, PLT
Cutting Thickness:
0-30mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
BodorPro
Place of Origin:
Shandong, China
Brand Name:
Bodor
Certification:
CCC, CE, GS, ISO, SGS
Laser Source Brand:
IPG/MAX
Laser Head Brand:
bodorgenius
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Beckhoff
Key Selling Points:
exchange platform
Warranty:
3 years
After-sales Service Provided:
Online support, Engineers available to service machinery overseas
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Advertising Company
Keyword:
cnc laser metal
features:
dual working tables
Laser power:
1000W / 2000W / 3000W/4000W
Working area:
3000mmX1500mm
Max Cutting Speed:
35m/min
Positioning Accuracy:
0.03mm
Reposition Accuracy:
0.02mm
Min Line Width:
0.1mm
Key words:
laser cutting machine
Supply Ability
Supply Ability:
300 Set/Sets per Month cnc laser metal
Packaging & Delivery
Packaging Details
cnc laser metal
standard fiber laser metal cutting machine wood cases
Port
Qingdao
Video Description
Product Description

Factory direct sell bodor fiber cnc laser metal cutting machine with double working table


Applicable Fields

Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, d sheet, electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials;
Widely used
Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.


Main Features



1.Double working tables for material load/unload during cutting to double improve working efficiency.

2. High-performance laser source and stable operating system which make the best cutting effect.

3. The machine owns perfect cooling system, lubrication system and dust removal system, to ensure that it can operate stably, efficiently and durably.

4. The machine is capable of automatic height adjustment to maintain constant focal length and stable cutting quality.

5. The machine is used for cutting a variety of metals with excellent and stable cutting quality.

6. The specialized CAD / CAM automatic programming software and automatic nesting software aim to maximally save raw materials.

7. Access to the CNC system through Ethernet interface makes communication and remote monitoring possible during the laser cutting process.

Detailed Images 2

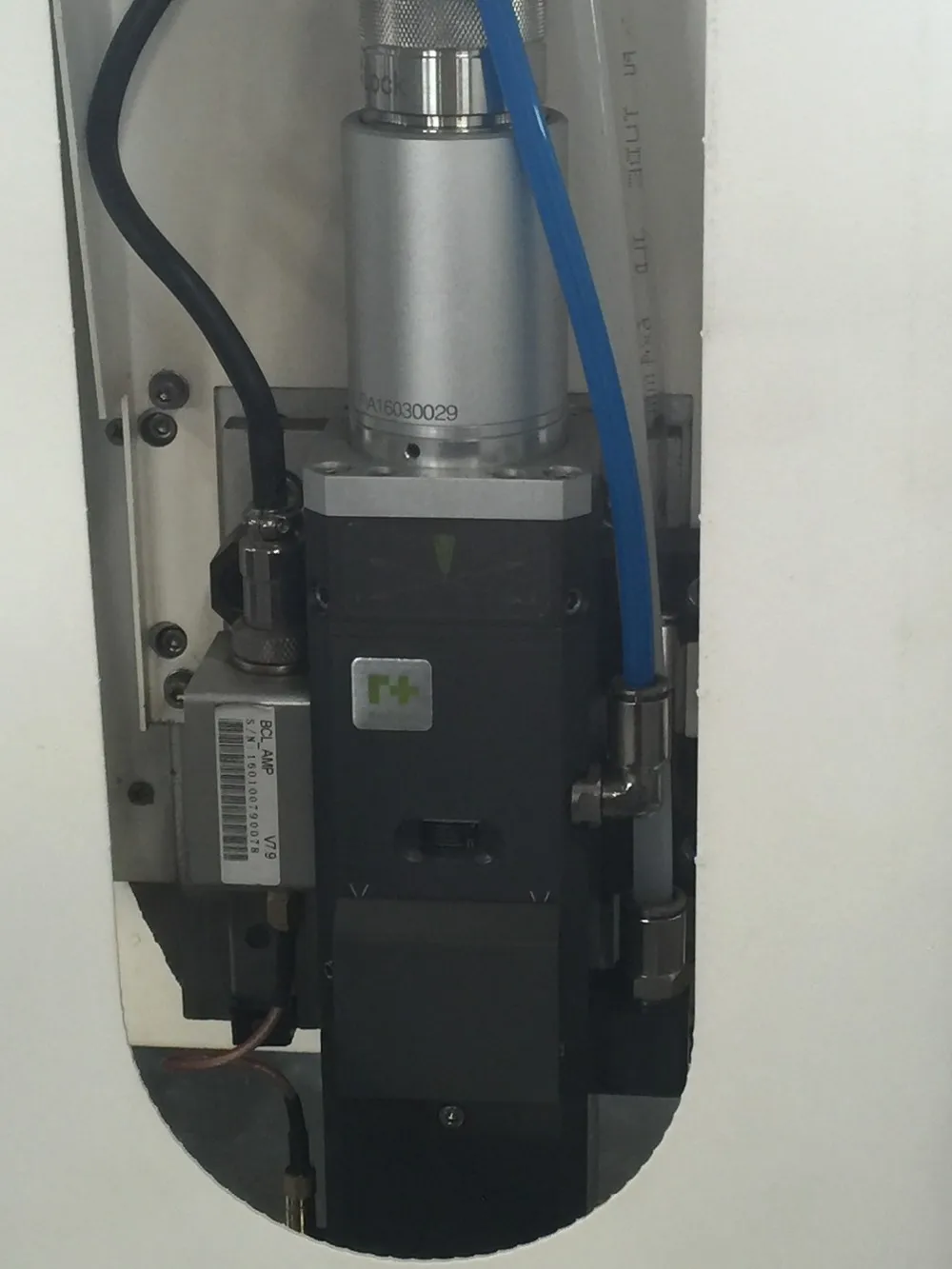

Swiss Laser tube

*Auxiliary Gas
*Nozzle
*Nozzle Distance
*Molten Material
*Residues
*Cutting Section
*Heat Affected Zone
*Joint-Cutting


WIFI Control

Find out failure cause and offer solutions at first time by checking fiber laser source parameters, controller alarm code, software etc.
How much money and time will be save!

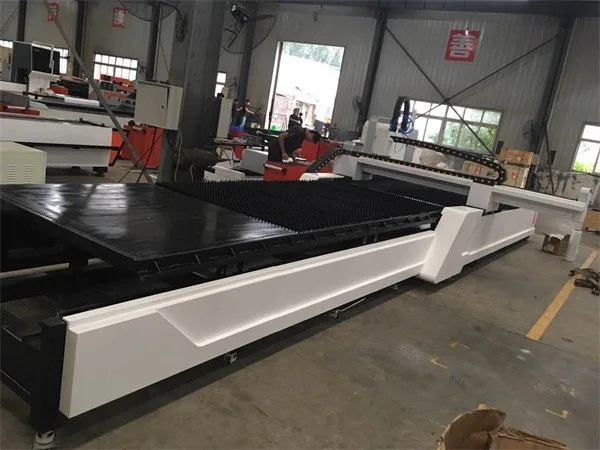

Loading material


Low stability of the bed, can reduce the time and power to help install the metal plate,

and then after the exchange platform to achieve the work efficiency.

Believe it is a best choose for your Working efficiency!!!





Laser source

500W ~ 6000W IPG
500W ~ 1500W MAX
Servo Motor
*France Schneider servo motor


Automatic Lubrication

It will help you to
* avoid friction damage to the Guide and rack;
* keep a high speed with the machine;
* protective guide and rack, then Extend the life of the machine


Cypcut Control System

1.Can draw easy graphics.
2.Support graphic software such as Mater Cam, Auto Cad, Coredraw, Type 3 etc
3.Support plt, ai,dxf,plt,gerber format.
4.Support English, Russian, Chinese.
5.It is easy to operate and use.
6.We have professional User Manual of this software.


NO.1

Flatness
Miled by gantry milling machine
NO.2
Firmness
650℃ Heat Aging Treatment for each body, To ensure the Machine Bed strong and non-deformation

No.3

3 axis

coordinate meter

No.4

Incoming goods Quality Control

No.5
Guide rail straightness and parallelism accuracy test(laser collimator set)
No.6
Haedness test
No.7
Accurate installation
No.8
Beam perpendicularity test(Marble feet)

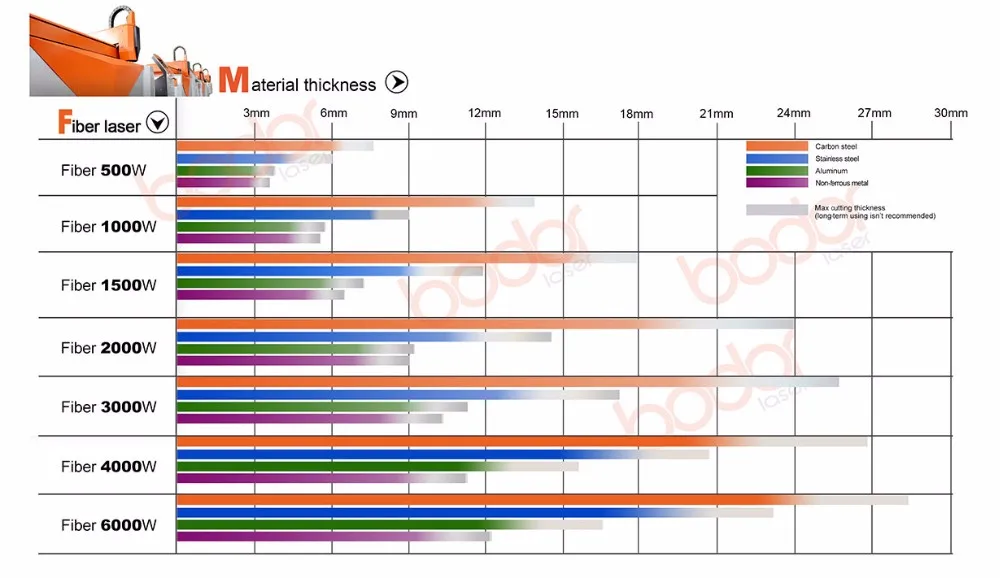

Model
F3015
STAINLESS
STEEL
Thickness:3mm
Max Cutting Speed: 1.5m/min
Optimum Cutting Speed: 1.0m/min
CARBON
STEEL
Thickness:6mm
Max Cutting Speed: 0.8m/min
Optimum Cutting Speed: 0.6m/min
COPPER
Thickness:2mm
Max Cutting Speed: 0.8m/min
Optimum Cutting Speed: 0.6m/min
ALUMINUM
Thickness:3mm
Max Cutting Speed: 0.8m/min
Optimum Cutting Speed: 0.6m/min
GALVANIZ-ED
Thickness:3mm
Max Cutting Speed: 1.0m/min
Optimum Cutting Speed: 0.6m/min

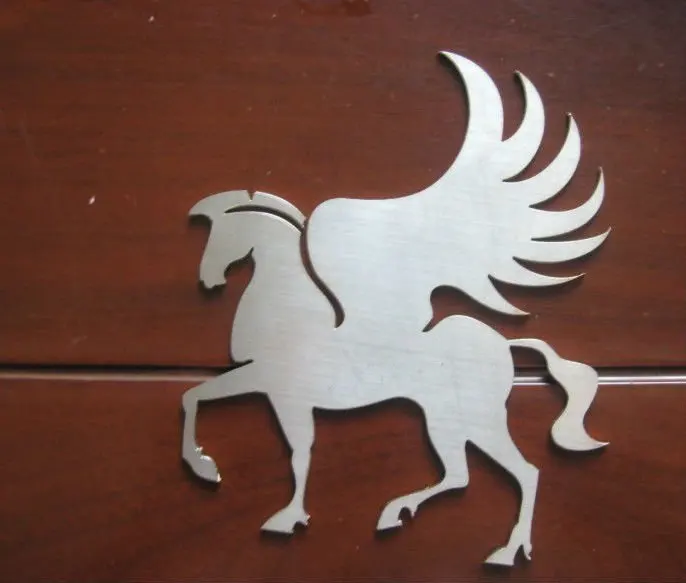

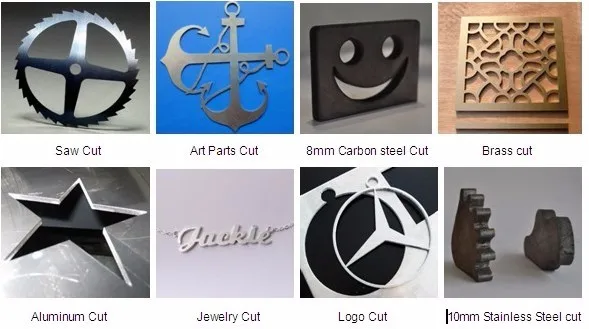

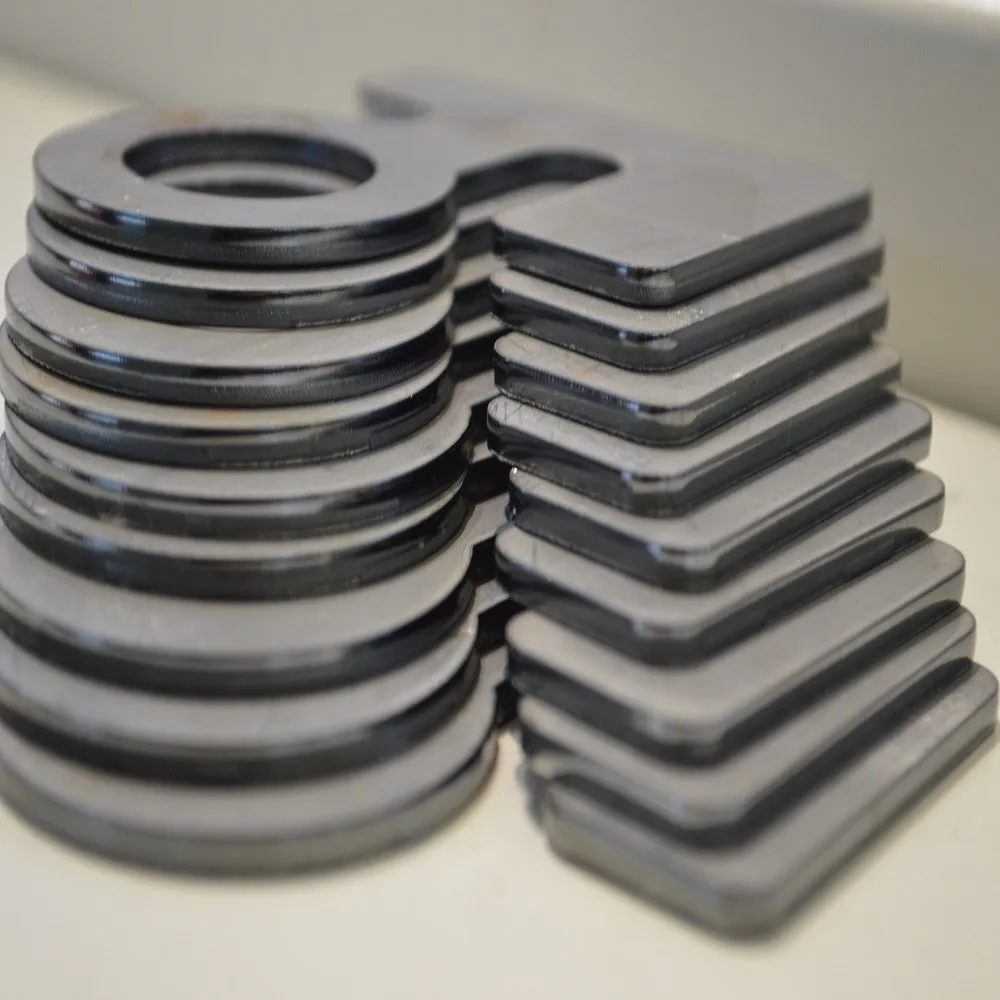

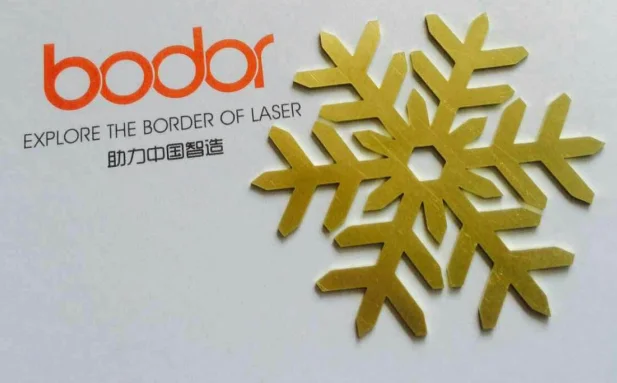

Samples of machine
Our Service

 3 Years Warranty
1) 24 Hours online service.
2) 36 months warranty for the whole machine except for wearing parts.
3) Engineers available to service machinery overseas.

FAQ

Q: How can I get the best suitable  machine for our business?
A: Just let us know your cutting material, thickness, and working area needed, we will suggest the most suitable machine and professional solution.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We Bodor group is not only manufacturer but also solution provider ,for our Fiber laser cutting serise ,once customer received our machine ,we will dispatch after-service engineer from Bodor Tech Center ,There will be a five-day training session teached by our engineer to our end-user.Lesson including :Installation Instructions / Operation Guide / Fault Handling .Our engineer will leave untill our end-user is satisfied.


Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!

Q: This model is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different models.
If you want to cut only metal tube, we have T series.
If you want to cut only metal plates, we have F series.
If you want to cut both metal tube and plate, we have F-T series.
If your country is strict on environment and safty, we have P series (with protective cover)
If you want to save manpower, we have A series (with automatic loading onloading device)

About our company

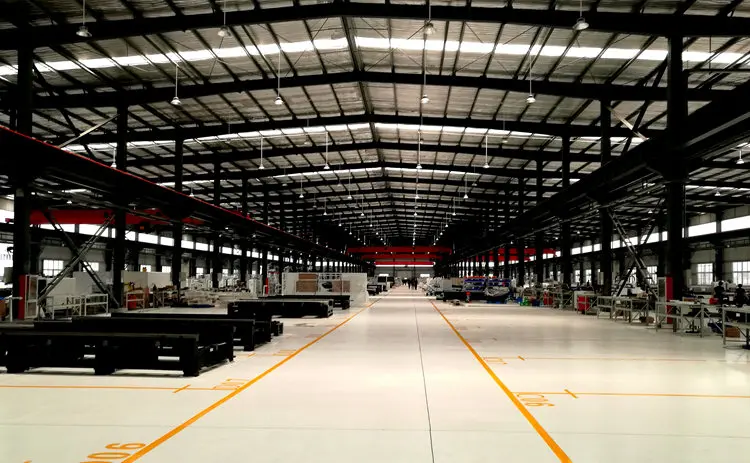

   Jinan Bodor CNC Machinery Co.,Ltd, established in 2008, is a professional manufacturer and exporter dedicated to the design, R&D and production of CO2&fiber laser machines that are widely used for cutting, engraving and marking of different materials. Bodor headquarters, with factory area as large as 30,000 square meters, is located in Jinan, the capital city of Shandong province. The company was successfully listed in 2016, making it the first publicly listed laser enterprise in the north of China. All of our products comply with international quality standards (CE, FDA, SGS, ISO9001, etc.) and are greatly appreciated by customers around the world. Bodor Laser has a dominant presence at both home and abroad market, with 70% of its turnover comes from exportation.

As the drafter of several standards in laser industry, BODOR initiates the concepts of Three Years Warranty and Integrated Casting Machine Body, which break traditional norm in this line. With application of state-of-art technology, most advanced manufacturing equipment in the world and strict quality control throughout the whole processing, the company is able to provide intelligent laser solutions according to specific customer requirements and ensure supreme customer experience.

With multi service languages, knowledgeable sales and after-sales team, 24/7 service, world wide market network covering more than 150 countries, we reach out to customers all over the world and look forward to all potential partnerships. Keeping in mind responsibilities for the well being of its staff and the society, Bodor is determined to gain world recognition with intelligently Made-in-China and change human life with laser technology.
