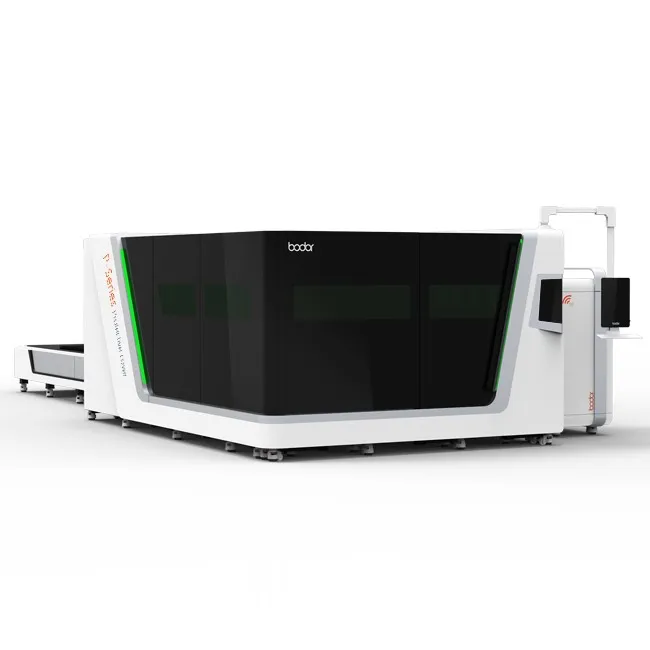

automatic IPG/MAX power 4000W fibre laser cutting machine for 14 stainless steel with certificado fda iso ce

  • 1 - 1 Sets
    $95,000.00
  • >=2 Sets
    $89,000.00
Model Number:
P4020A
Power(W):
1000W/1500W/2000W/3000W/4000W
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 55 Negotiable
Customization:
Customized packaging (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
4000*2000mm
Cutting Speed:
35m/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cutting Thickness:
Materials
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Bodor Pro
Place of Origin:
China
Brand Name:
Bodor
Certification:
CE, GS, ISO, SGS, FDA TUV
Laser Source Brand:
MAX/IPG
Laser Head Brand:
BodorGenius
Control System Brand:
Bodorpro
Weight (KG):
113300 KG
Key Selling Points:
cast iron bed
Warranty:
3 years
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
After Warranty Service:
Video technical support, Online support, Spare parts
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Advertising Company, industry
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location:
United States, Germany, India, Russia, Kenya
product name:
4000W IPG fibre laser cutting machine
Laser Power:
1000W/1500W/2000W/3000W/4000W
Working area:
4000*2000mm
Function:
Cutting Metal Materials
Keyword:
Fiber Laser cnc metal Cutting Machiens
Supply Ability
Supply Ability:
400 Set/Sets per Month
Packaging & Delivery
Packaging Details
1Whole film packaging machine;
2Anti-collision package edge;
3Fumigation-free plywood wooden box with iron binding belt
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 55 To be negotiated
Video Description
Product Description

automatic IPG power 4000W fibre laser cutting machine for 14 stainless steel with certificado fda iso ce

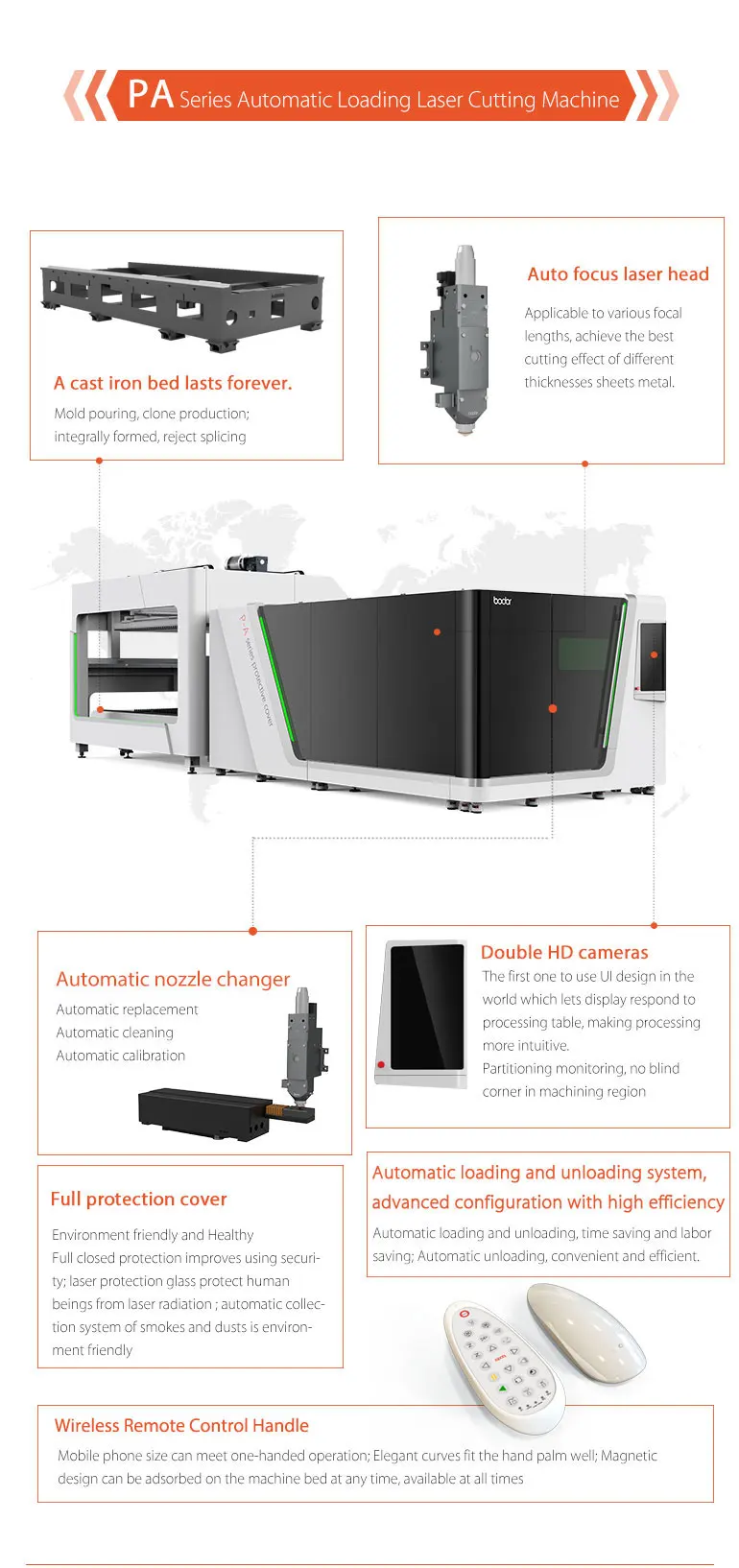

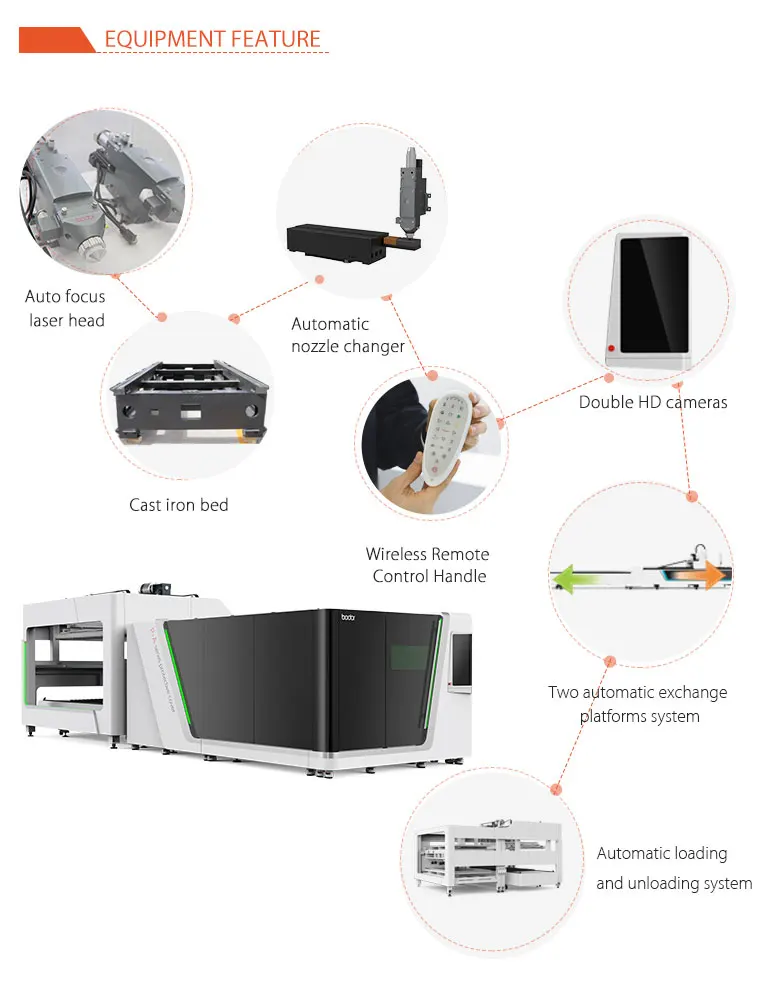

Main Features

2000 watt fiber laser cnc cutting machine for metal

1. Designed multi-function trolley can do loading and unloading work at the same time, vacuum grip device can uplift weight up to 220kg, significantly reduces the labor intensity, and improves the work efficiency.

2. When needed, loading and unloading can be operated by multiple devices at the same time, which can be concatenated, modular design is meeting the current design trend, improves work efficiency. It is available for one person to operate several devices together.

3. Feeding mode is driven by frequency conversion drive-down motor, high transmitting power and safety factor, enabling stepless speed adjustment for different operating frequencies.

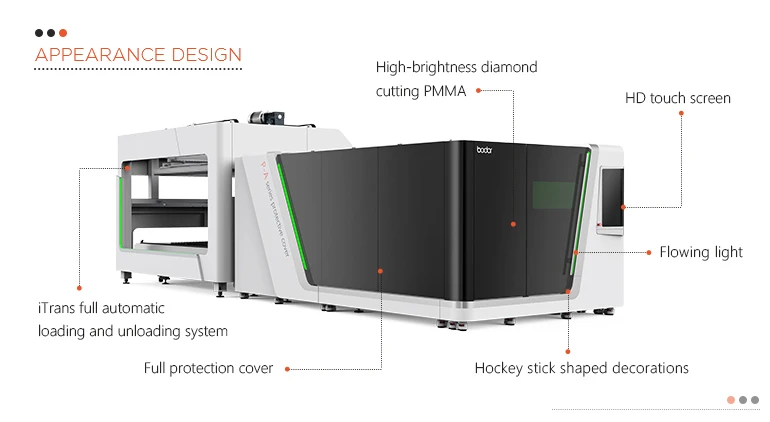

Dual display screens

The P-A model is designed with dual displays, one for control system, the other for internal high resolution display monitoring, making it possible to oversee real time operation within the machine.

Full automation

Automatic material loading and unloading platform, to save manpower, improve processing speed and efficiency.

Safety protection

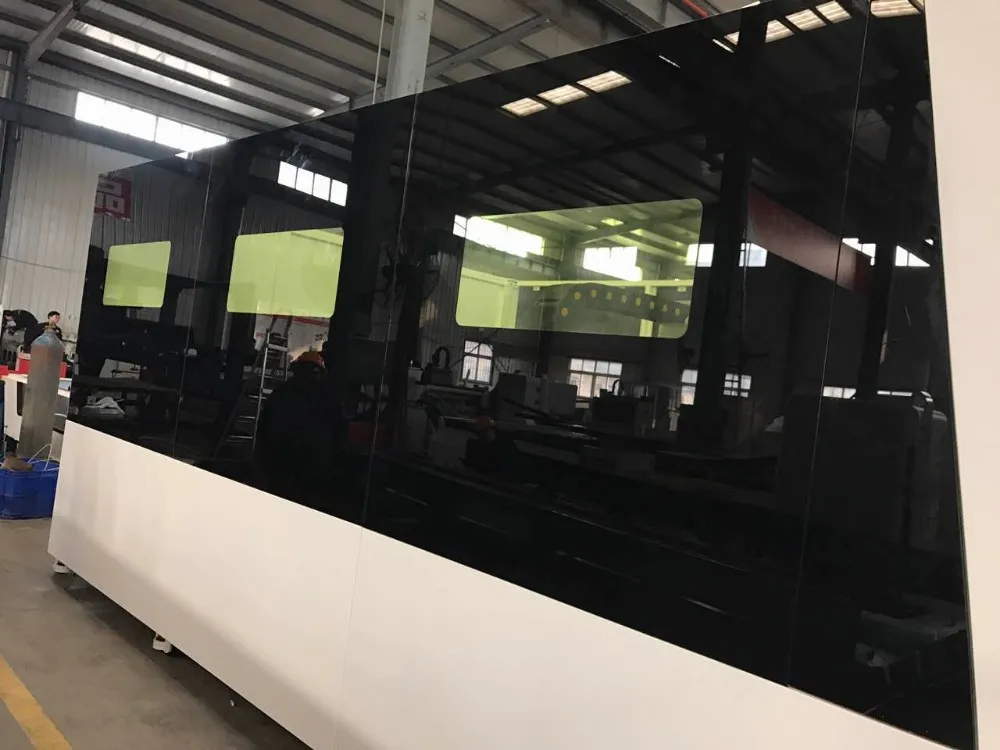

Fiber laser cutting machine P-A model is featured with full enclosure cover to its flatbed for human body protection of its operator.

Model
P4020A
Option
Working Area
4000x2000mm
According to demands
Laser Output Power
500W/1000W/1500W/2000W/3000W/4000W
Positioning Accuracy
0.03mm
Reposition Accuracy
0.02mm
Max Simultaneous Positioning Speed
140m/min
Max.Cutting Speed
35m/min

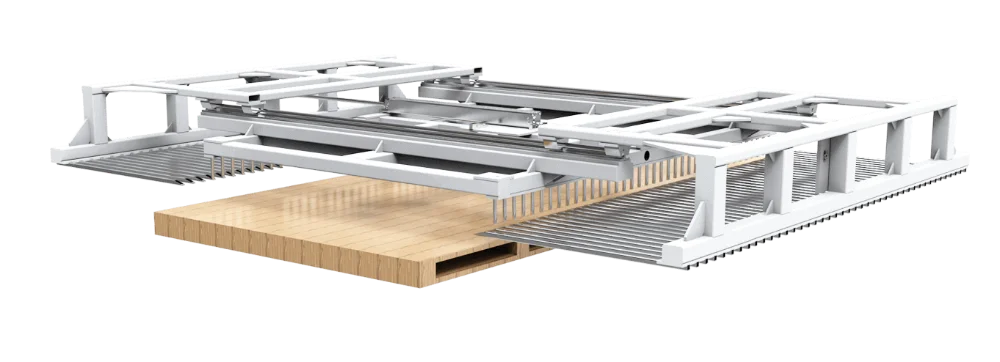

Automatic unloading system

The unloading design is made up of 86 stainless steel bars which perform to lift finished products and prevent falling off.

Suction cup

Automatic loading system is designed with pneumatic suction cup capable of moving up and down to suck up plate metal, with max suction capability as 380kg.

1.Application

Widely used in the processing of advertising board, metal plate structure, Hv/lv electrical ark production, textile machinery parts, kitchen utensils, car, machinery, elevator, electric parts, spring coil slice, subway line spare parts, etc..

2.Widely used

Suitable for cutting carbon steel, stainless steel, aluminum, copper and alloy metal materials

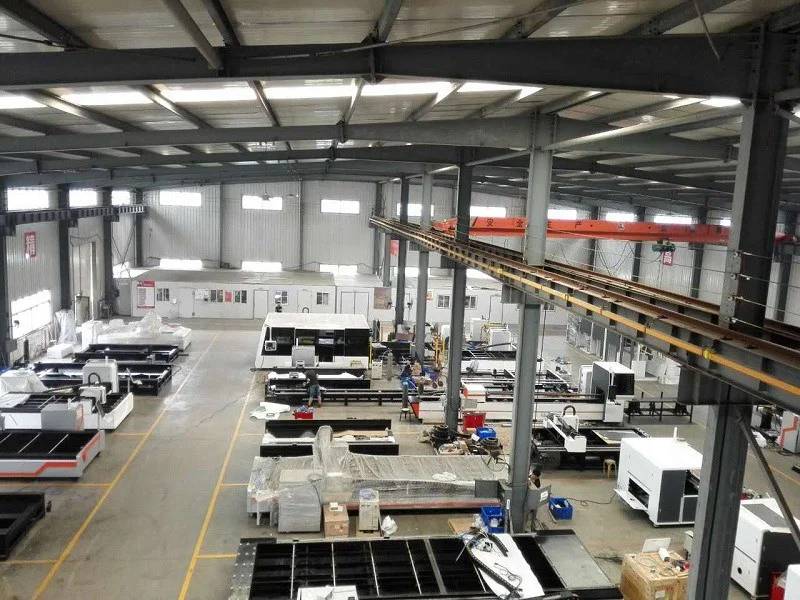

Machines in workshop

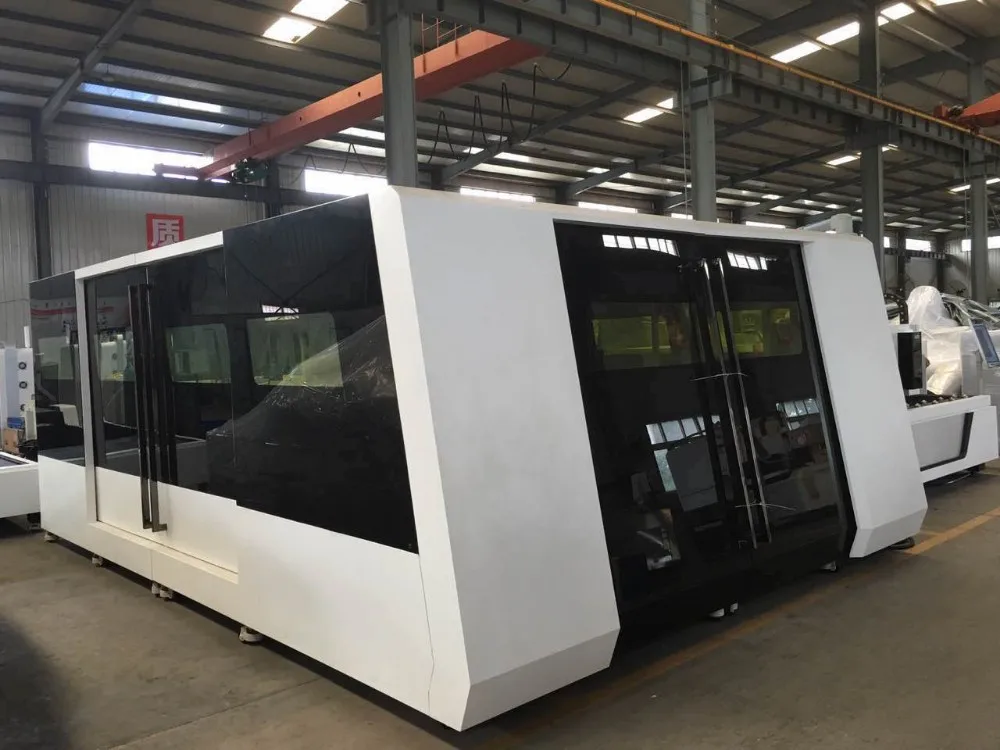

Machine front

Machine side

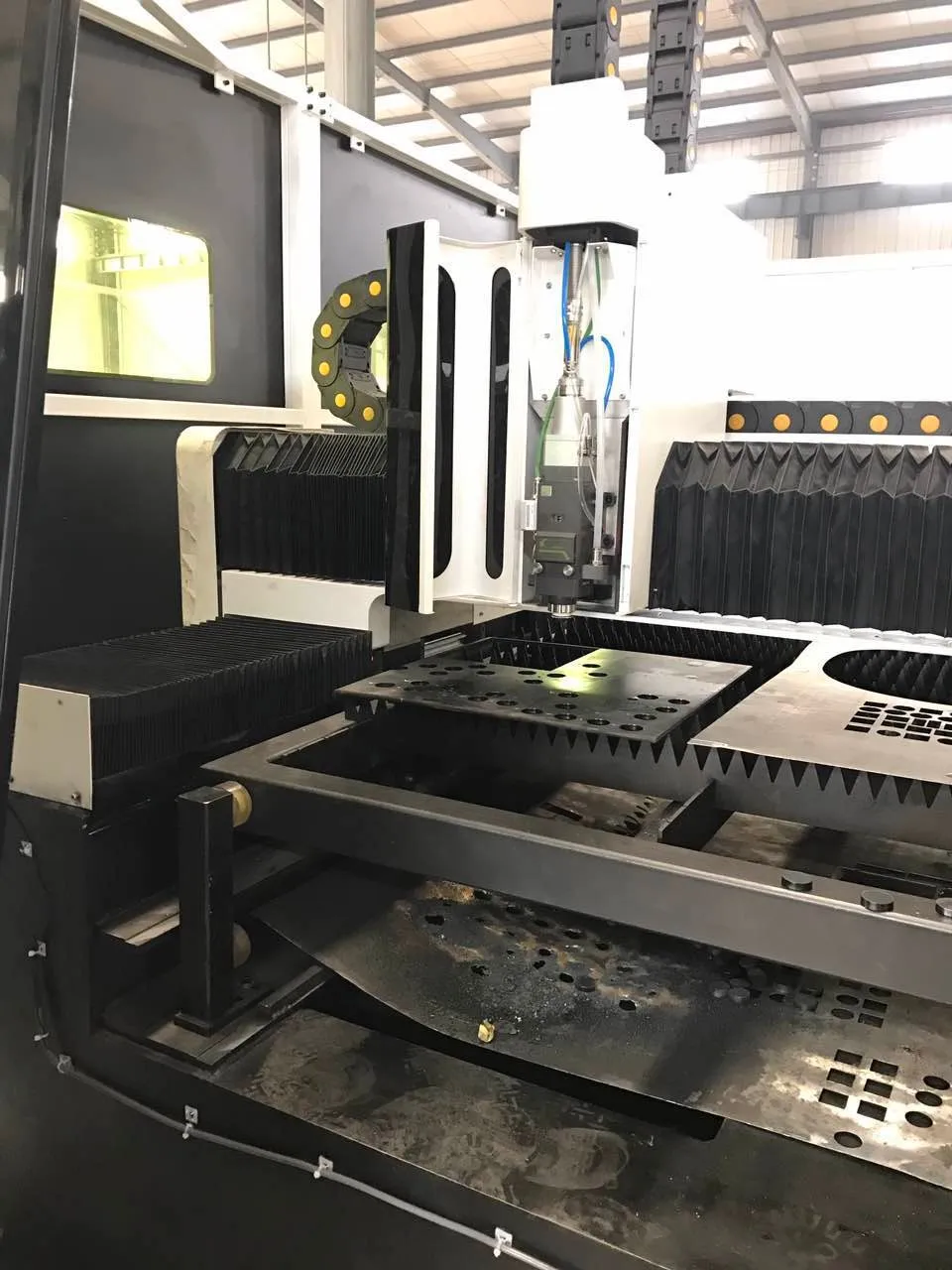

Inside

Machine work table

Metal cutting machine body

Machine Parts

Franch Schneider servo motor

  Satellite gears are double-supported on hardened and group shafts with full-complement needle bearings increasing torsional stiffness.

Japan NSK bearing

  These bearing housings have square flange which can beeasily attached to a machine with four bolts. With it's simple mounting face, this bearing unit is widely used.

Japan SMC Pneumatic

  Stepless control of air pressure proportional to an electrical signal.
Serial communications specifications.
Compact/lightweight (Integrated communication parts).

Franch MOTOREDUCER Reducer

  Satellite gears are double-supported on hardened and ground shafts with full-complement needle bearings increasing torsional stiffness.

Backlash ≤ 3 arcmin.Standard operating temperature range is -15℃ to 45℃. Protection rated IP 65 standard.

Schneider electronic parts

  Circuit protection against short-circuit currents, Circuit protection against overload currents, Breaking and industrial disconnection as per standards IEC/EN 60947-2.

Overvoltage resistance,

High performance limitation,
To fast closing independent of the speed of actuation of the toggle

Automatic lubrication system

  Electrical lubrication is a kind of Gear pump with rational construction , great performance , complete functions.
Controlled by main machine system which could inspect the liquid level of the oil tank, the pressure of oil transportation , and setting the lubrication periodicity. Effective avoid rust and ensure the cutting accuracy .

 Laser Source

 Optical fiber transmission to adjust the laser path.



              IPG/Maxphotonics/nLight/Raycus



               Wavelength range:1070~1090nm

               Beam quality TEM00 (M2<1.8)
               Forced air/Water cooling
               More than 100000 hours work-lifediode

RAYTOOLS Laser Head

Optimization of the optical configuration Smooth and efficient air flow design. Rotary Knob focus adjustment. More easy and flexible.

 Adjust range : 20mm  accuracy : 0.05mm.

Drawer style mirror stand, changing protect glass faster and more easily. Collimating lens and focal lens adopt compound lens, to obtain the optimal optical quality and the cutting effect.

Packing & Delivery

Wooden Case is after fumigation treatment. Needn't timber inspection,saving shipping time.
All the spare parts of the machine were bovered by some soft materials,mainly using Pearl Wool.

Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly, make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

The outmost is Wooden Case With Fixed Formwork.

The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

About our company

Founded in 2002.
In 2008 we formally changed name to Bodor with RMB 10 million registered capital.
Has developed to a Large-scale International Manufacturing company.
More Accuracy,More Automatically and Higher Quality Products with Intimate After-sales Service
Bodor Be The Leader Of Laser Industry
Earn the Best Reputation and World-wide Trusted Customers.
Bodor laser machines cover all Chinese market and also very popular in America,West Europe,South Asian,East Asian etc. More Than 80 Countries.

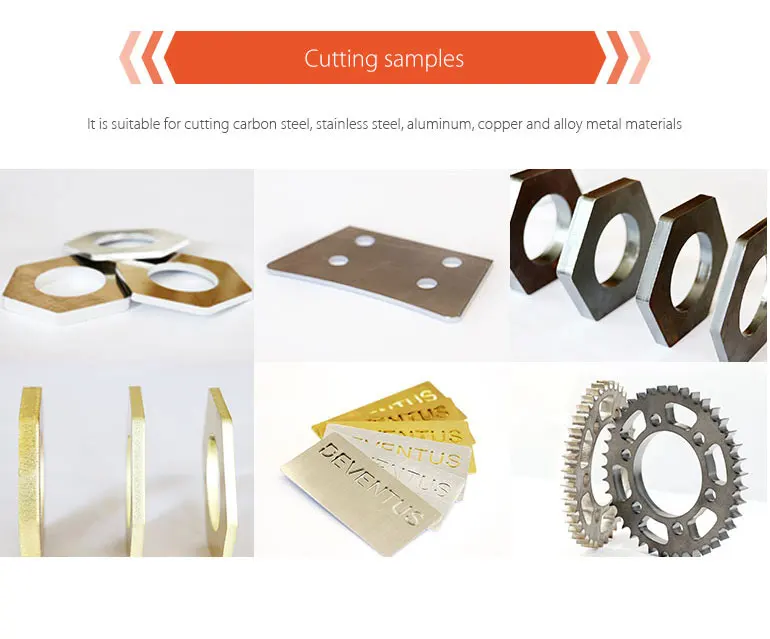

Samples show
