IPG/MAX fiber laser cutting machine for cutting metal sheet and tube laser cutter

FOB Reference Price:Get Latest Price
$85,000.00 - $100,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
F3015T
Power(W):
1000w
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Speed:
0-40000mm/min
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cutting Thickness:
0-30mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Bodorpro
Place of Origin:
Shandong, China
Brand Name:
Bodor
Certification:
CE, ISO, SGS
Laser Source Brand:
IPG/MAX
Laser Head Brand:
bodorgenius
Control System Brand:
bodorpro
Weight (KG):
7000 KG
Key Selling Points:
cast iron bed
Warranty:
3 years, 3 Years
After-sales Service Provided:
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Engineers available to service machinery overseas
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Building Material Shops, Manufacturing Plant, Farms, Advertising Company, industry
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location:
United States, Germany, India, Russia, South Korea
Product name:
All-in-one cnc fiber laser cutting machine for cutting sheet&tube
Laser power:
1000W/2000W/3000W
Positioning Accuracy:
0.03mm
Reposition accuracy:
0.02mm
Max moving speed:
100m/min
Electrical components:
Schneider
Laser source:
IPG&MAX
X/Y-axis Max. linkage speed:
140m/min
Cutting Area:
3000*1500mm
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
1Whole film packaging machine;
2Anti-collision package edge;
3Fumigation-free plywood wooden box with iron binding belt
Port
Qingdao/Shanghai
Product Description

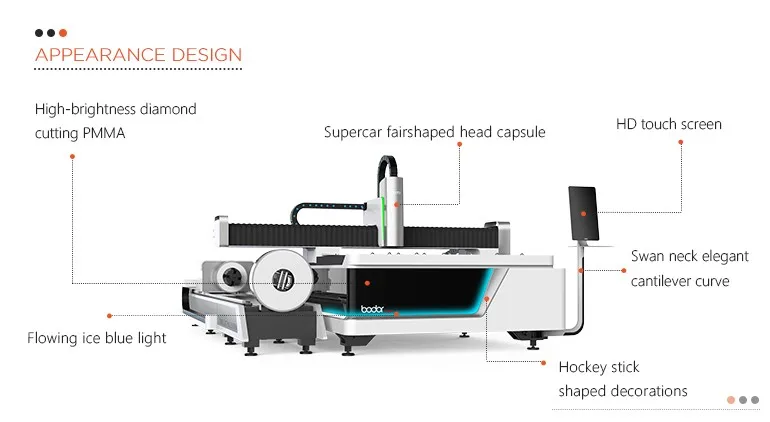

All-in-one cnc fiber laser cutting machine for cutting sheet&tube metal

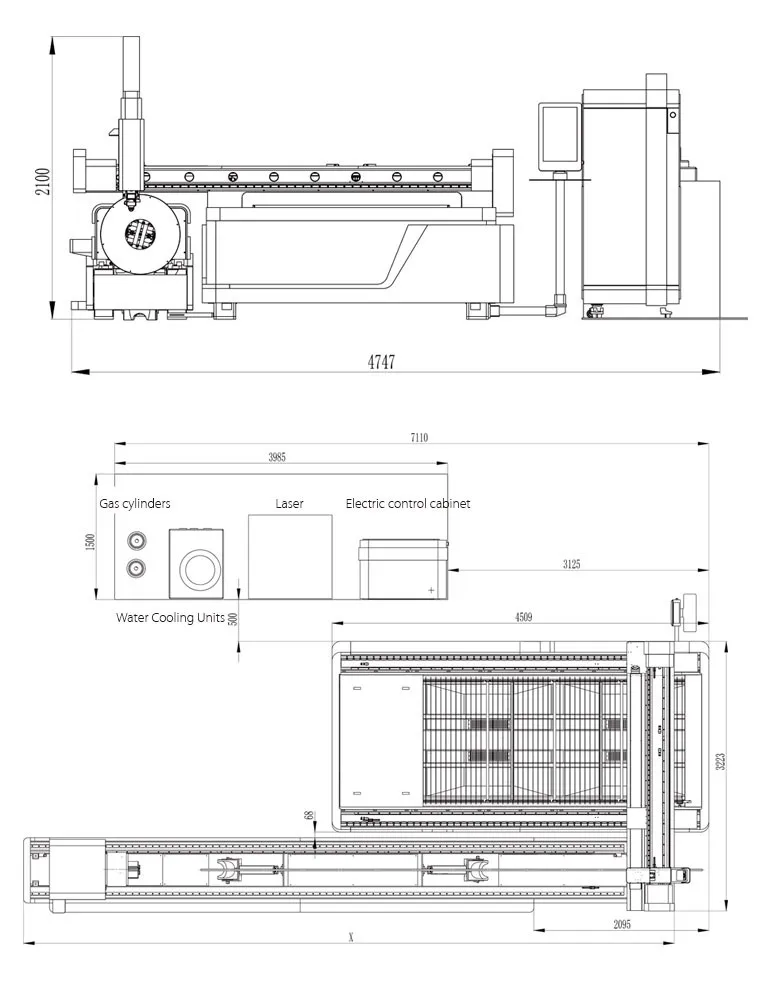

Technical Parameters

Applicable Fields

Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet, electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials;
Widely used
Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal processing.

Model

F3015T

Working Area
3000*1500mm
Laser Module
Fiber Laser Module
Laser Power
1000-4000W
Effective pipe cutting length
3m/6m/9m
Max.Moving Speed
100m/mine
Max.Cutting Speed
35m/min
Positioning Accuracy
0.03mm
Repeatability Accuracy
0.02mm
Min.Line Width
0.1mm
Cooling Mode
water cooling

Main Features

1. Cuts up to 5'x10' metal sheets
2. Energy efficient: Lowest running cost for cutting metal
3. Capacitive Auto-height adjusting cutting head
4. Closed Japan Yaskawa servo motors w/ rack for rapid precise cutting
5. Different power draw (500w 700w 1000w  2000w 30000w 4000w)
6. Computer design suit for repeat cutting
7. Programmable cutting assist gas solenoid
8. 1070nm fiber laser has 3x to 10x the absorption efficiency of CO2 for cutting metal
9. Laser is contained inside a fiber optic cable (no mirrors to adjust)
10. 10x smaller spot sizes than 10.6um CO2 type lasers
11. Solid state laser lasts over 50,000hrs
12. Various power options from 200W to 2kW (default 500W)
13. Easily cuts through 6mm carbon steel, 3mm stainless, 2mm aluminum (500w).

      12mm carbon steel, 6mm stainless steel, 5mm aluminum (1000w)

Machine Parts



       Laser Source

           Optical fiber transmission,

            don't need to adjust the laser path.

            IPG, Maxphotonics, nLight, Raycus fiber source

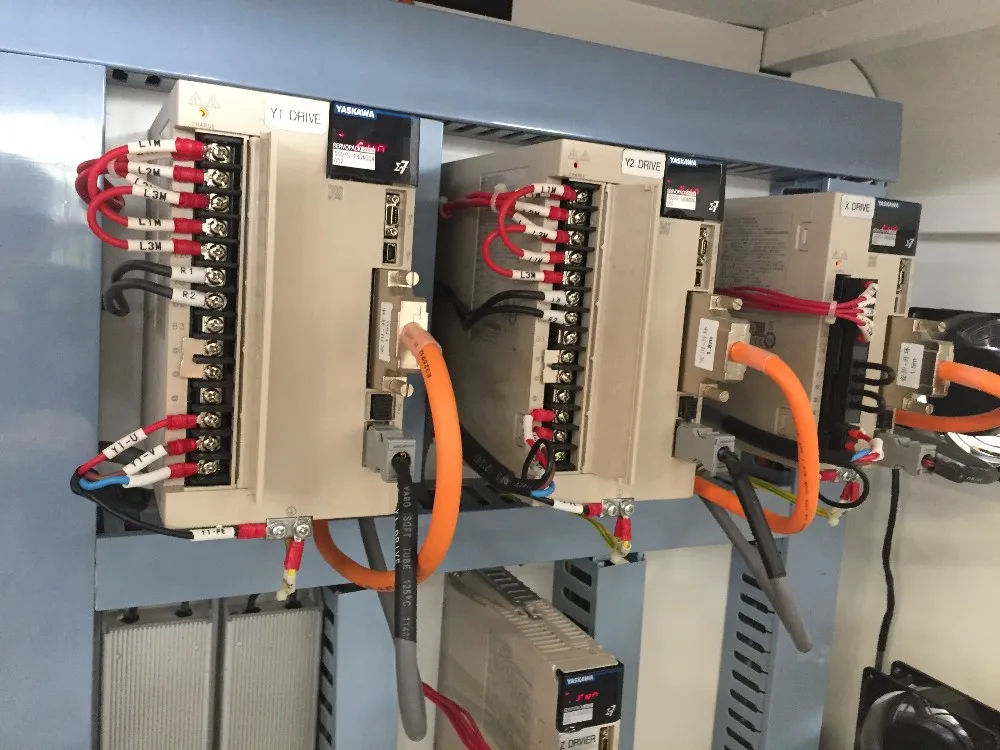

                    Servo motor

               Japan yaskawa servo motor



       Auto-following laser head

         Automatically adjust the focal

         distance according to the bump

         degree of plate.

            Switzerland Raytools cutting head

            Germany PRECITEC cutting head

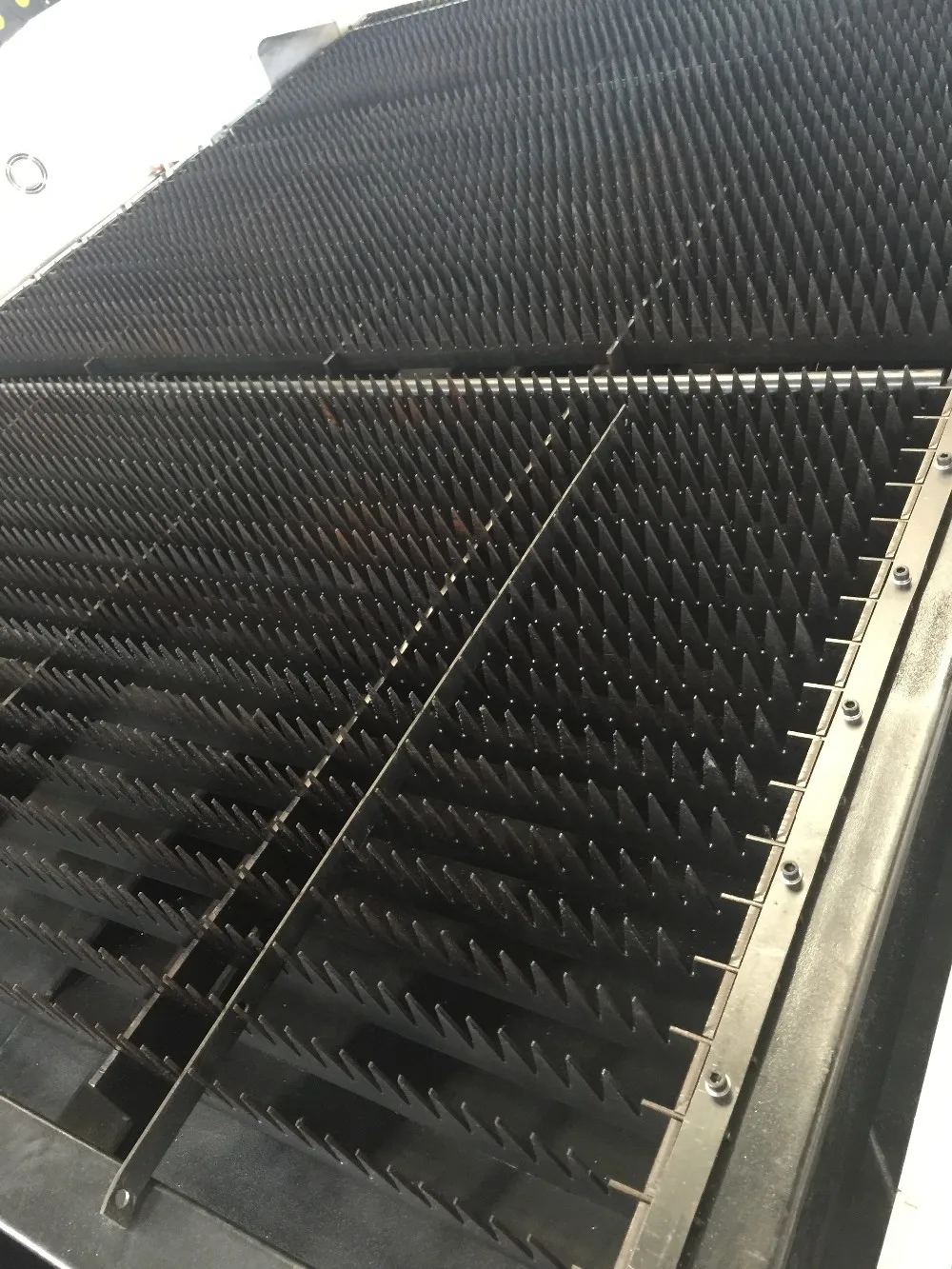

        The solid machine bed

              Heavy gantry structure to ensure the

              stability





   Japan SMC pneumatic components

     Easy to put the material to the work table.

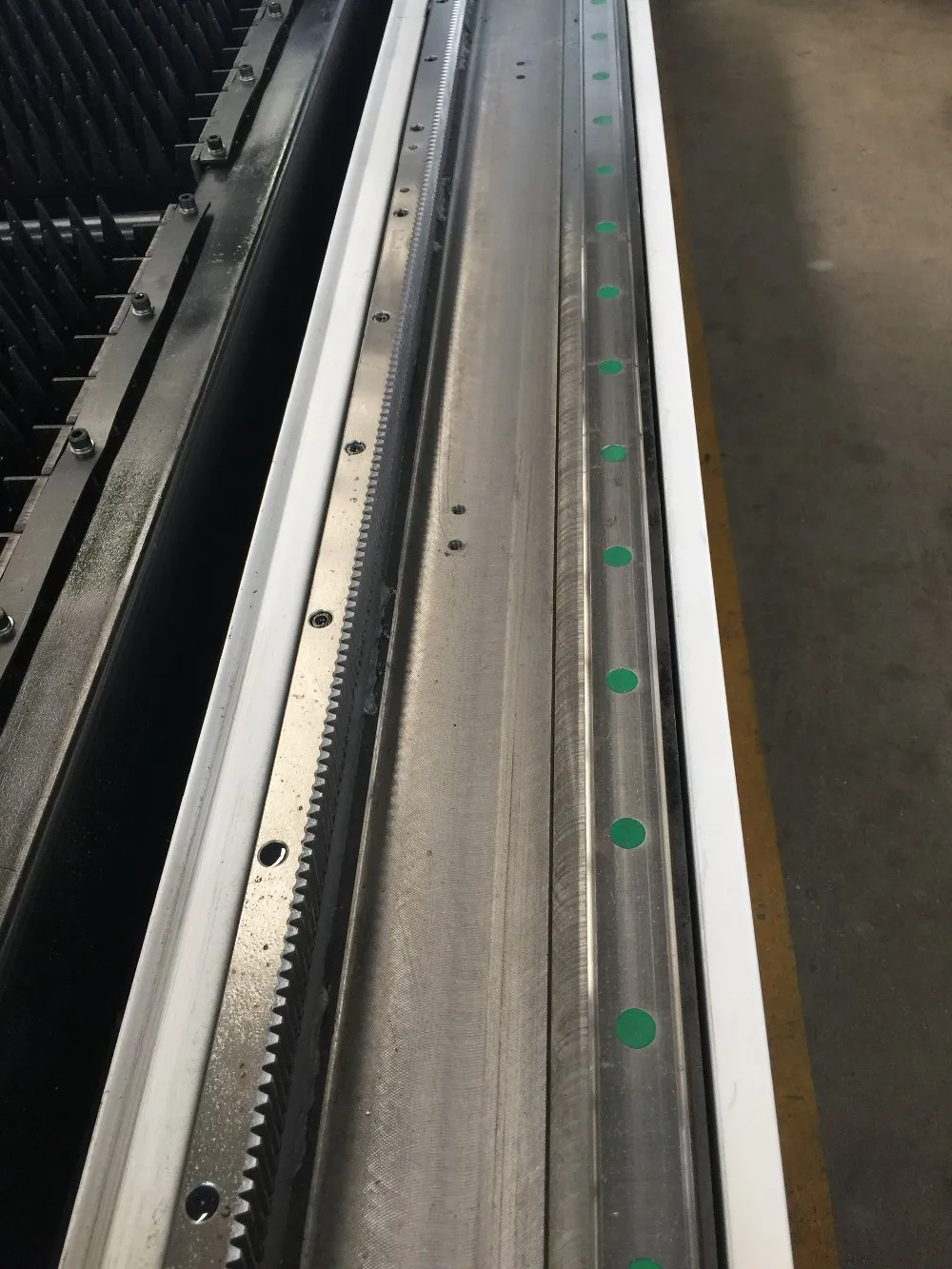

    Gear and Rack Transmission way

       YYC Gear and Rack.
       Higher transmission accuracy than others, almost                0.1mm
       Quicker transmission with YYC gear rack

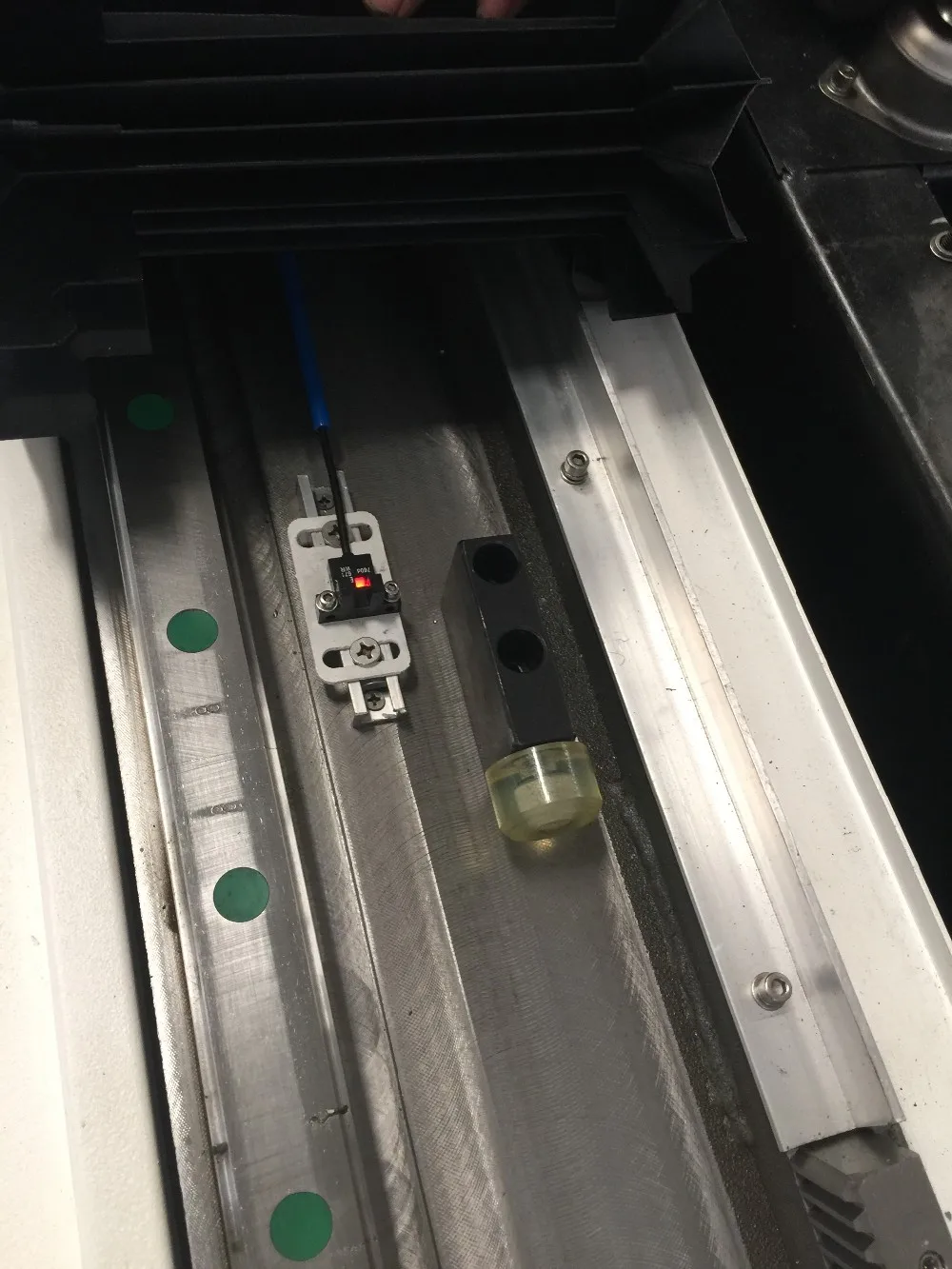

Triple limit protection

Hard, induction and mechancial

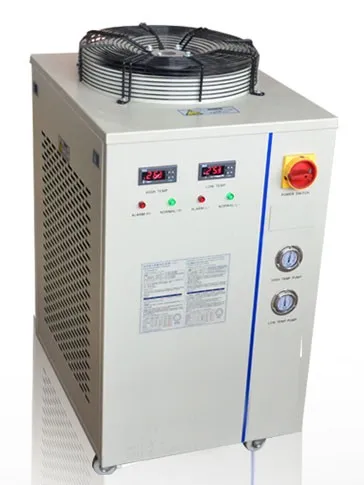

                                  Water cooling device

                                             Dual cooling function

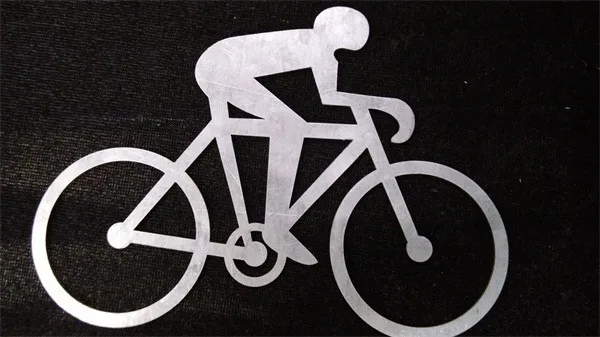

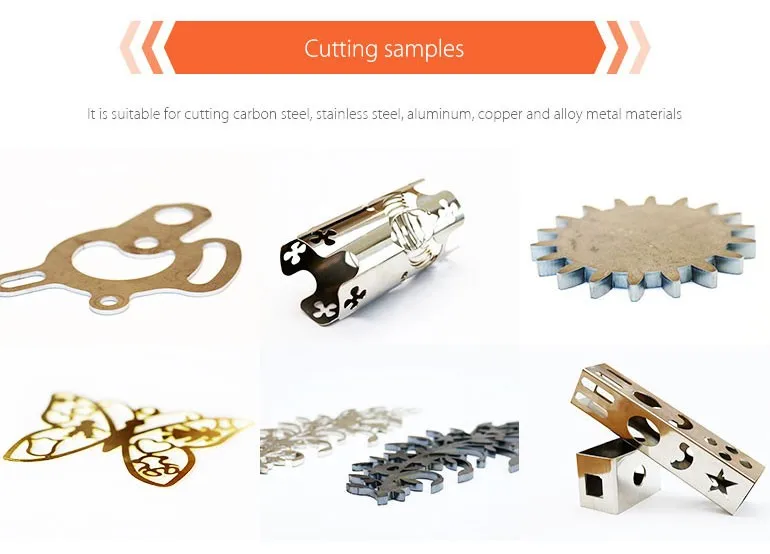

Samples show

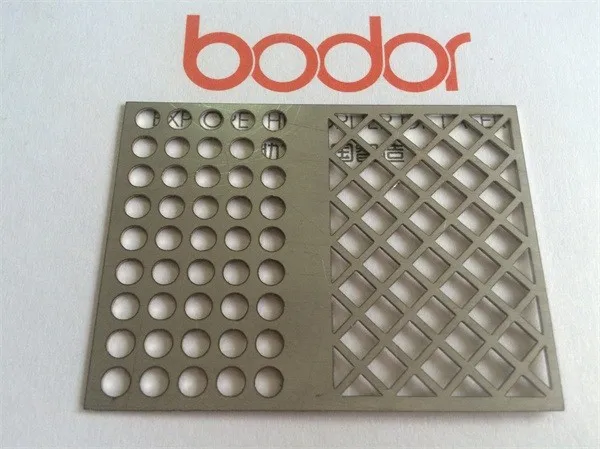

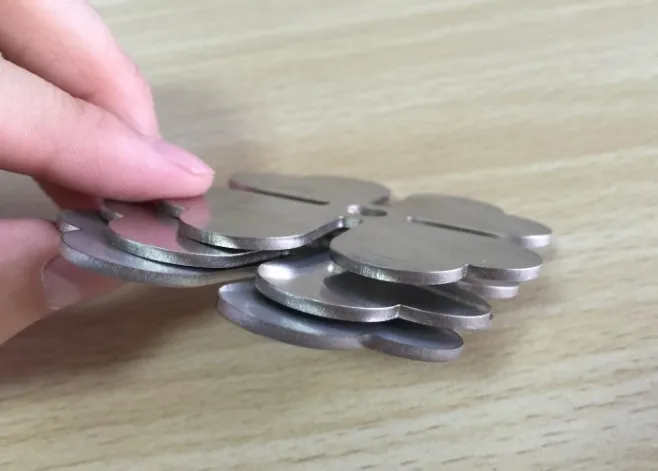

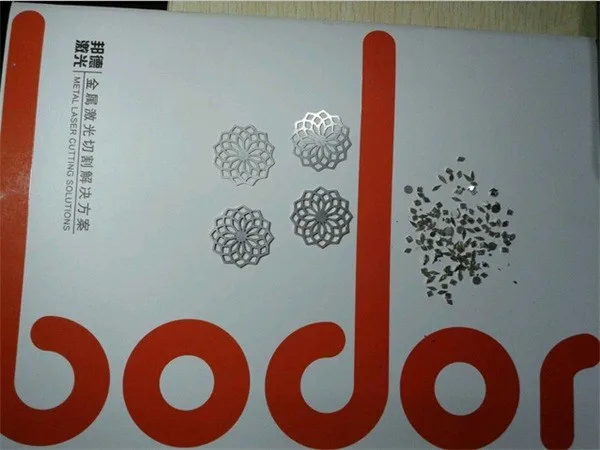

Stainless steel cutting

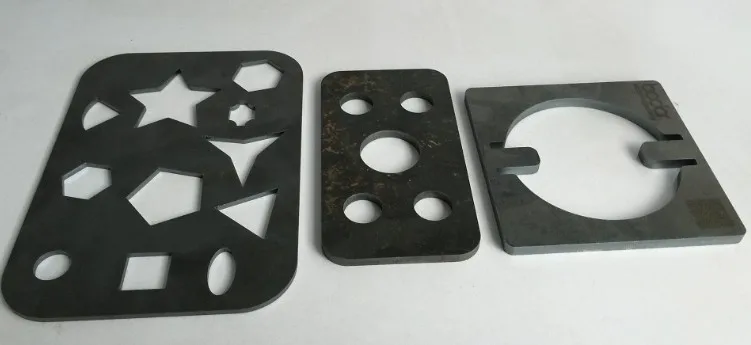

Carbon steel cutting

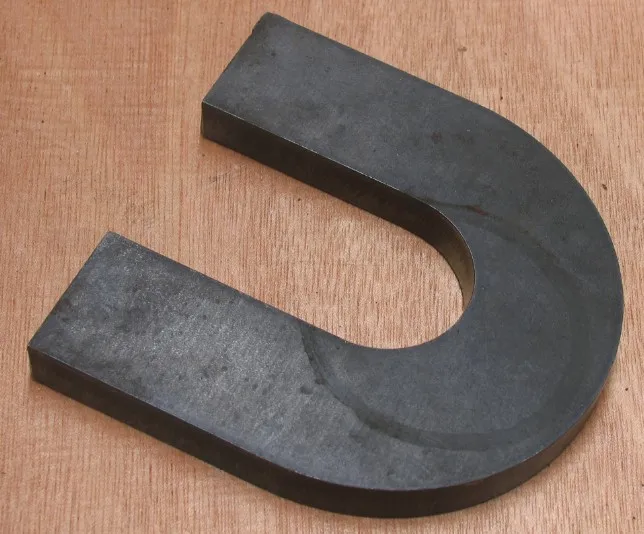

8mm carbon steel cutting

Copper &  stainless steel cutting

Galvanised plate cutting

Stainless steel flying cutting

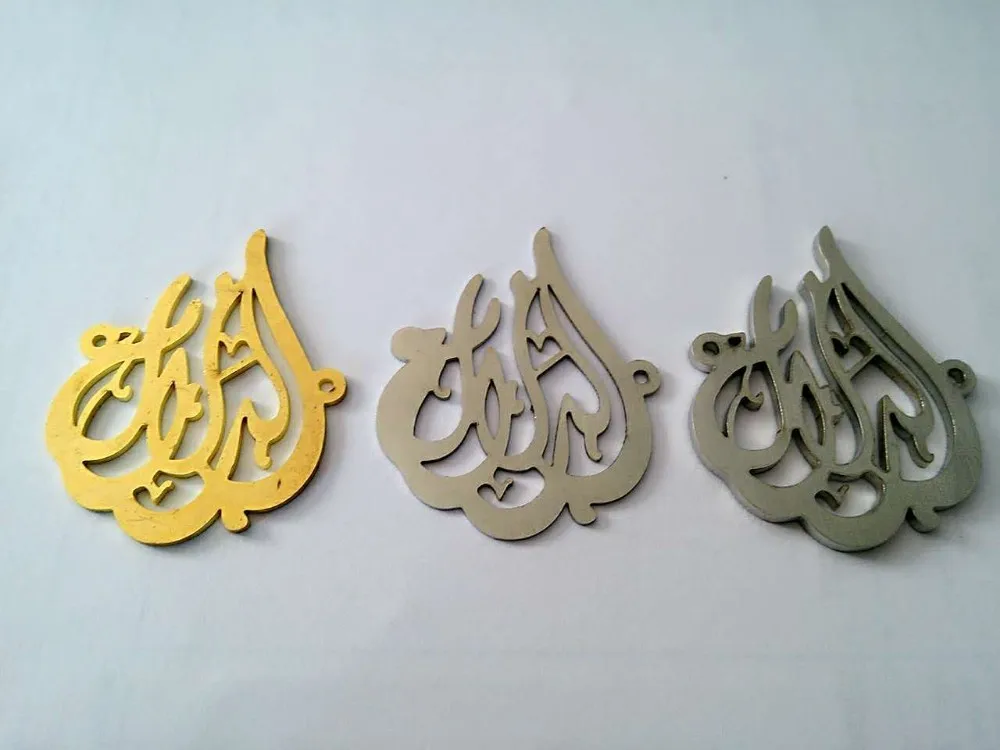

Silver cutting

Certifications

Our all machines come with 3 years warranty, and we have the certifications of ISO9001, BV, UL, SGS, CE, FDA, ect

About our company
Package

Our Package Advantage:

1.Our wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.

2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.

Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.

3.The outmost is wooden case with fixed formwork.

4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.

FAQ


 Q1: I knew nothing about this machine, what kind of machine i should choose?

Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions and suggestions.

Q2: When I got this machine, but I don't know how to use it. What should I do?

We will send video and English manual with the machine. If you still have some doubts, we can talk by telephone or skype and e-mail.

Q3: If some problems happen to this machine during warranty period, what should I do?

We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.

Q4: Before sending me an inquiry on our fiber laser, it is better for you to provide me the following information

1)Your metal or non-metal material size. Because in our factory, we have different models according to working area.

2)Your materials.

Metal/Acrylic/plywood/MDF?

3)You want to engrave or cut?

If cut, could you tell me your cutting thickness? Because different cutting thickness need different laser tube power and laser power supplier.
